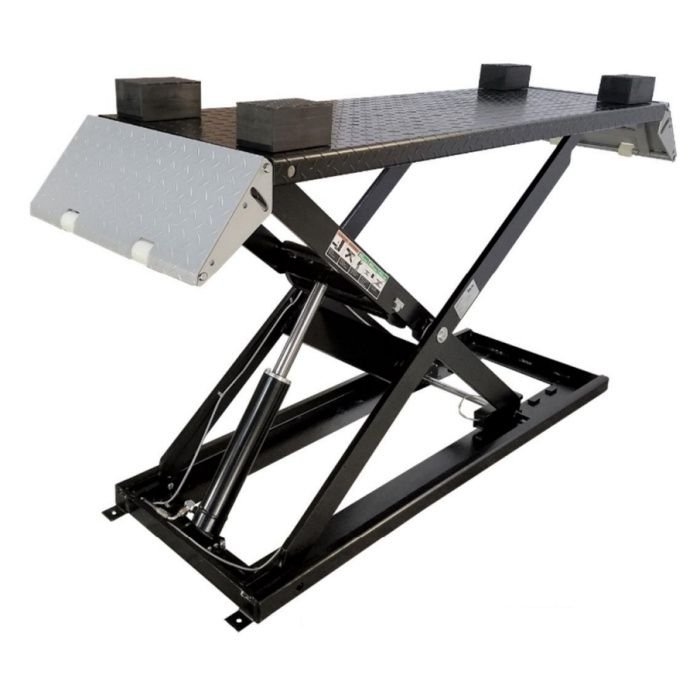

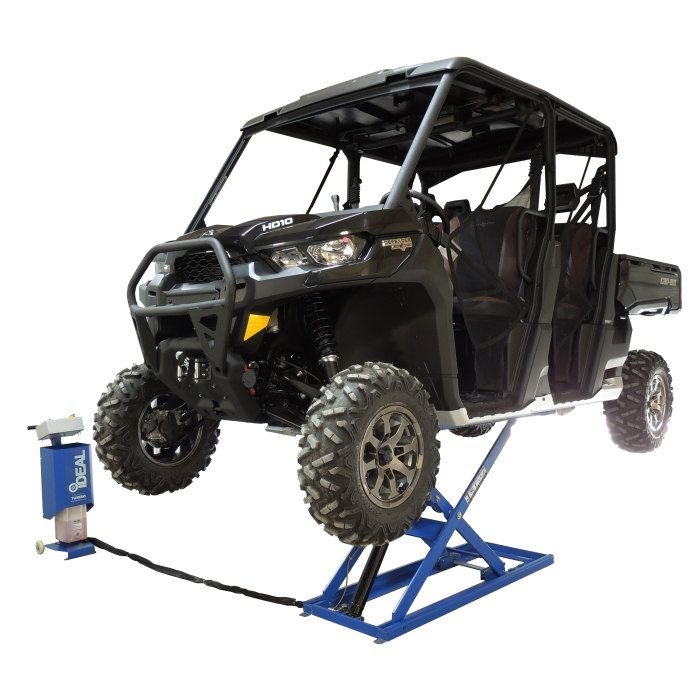

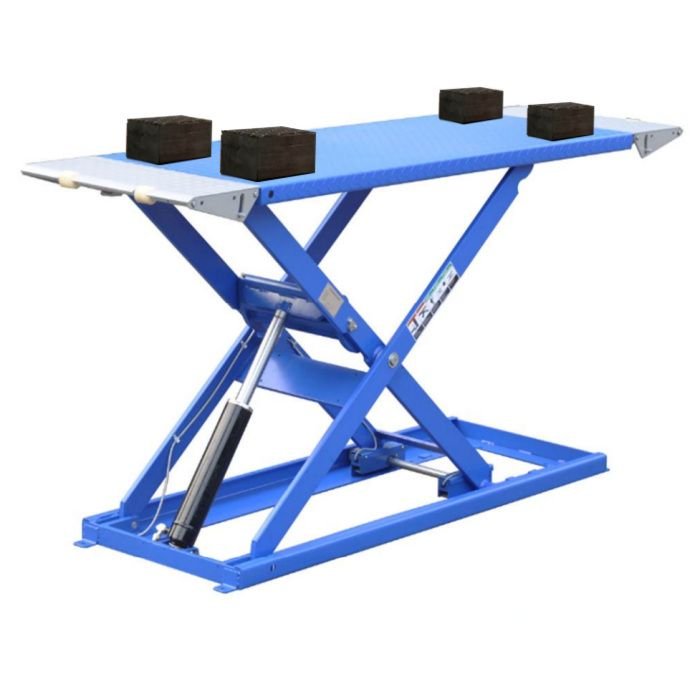

UF-2500EH-X Pro Series Frame Engaging UTV ATV Lift is able to lift the largest of UTVs with it’s 2,500 lbs. capacity. The innovative ‘frame-engaging’ lift design allows for wheel and suspension service for the largest utility and all-terrain power sport vehicles.
Featuring heavy-duty construction, durable powder coat finish, diamond plate platforms and load-bearing ‘flip-up’ hinged extensions. The lift has a small footprint providing less impact on your valuable work area. Smooth and quiet operation is provided by the 110V electric / hydraulic operation. The control panel allows for portable operation or as a fixed pedestal with it’s anchoring option. The heavy-duty scissor lift has three locking positions and an electro-magnetic lock release.

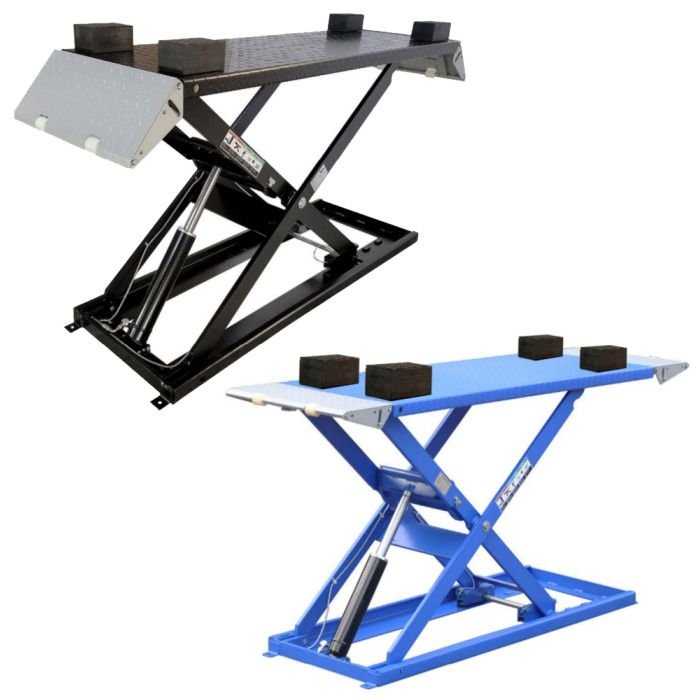

With all these great features the UF-2500EH-X is the complete package for a premium, high quality utility vehicle lift at a great value! The UF-2500EH-X is available in blue or black.
Features and Specs
Features
- Innovative ‘Frame-Engaging’ Lift Design
- Allows for Wheel and Suspension Service for the Largest UTV and ATV Power Sport Vehicles
- Load Bearing ‘Flip-Up’ Hinged Platform Extensions for the Largest UTVs
- Small Lift Footprint Provides Additional Workspace for a Safe and Clean Work Area
- Rapid Rise and Descent with Three Locking Height Positions
- Portable or Fixed Pedestal Anchoring Option for Control Stand
- Fully Operational Control Panel with Electro-Magnetic Lock Release
- Heavy-Duty Diamond Plate Platform and Extensions
- Smooth and Quiet 110V Electric / Hydraulic Operation – No Compressor Required
- High Quality Construction with Durable Powder Coat Finish
- (4) Rubber Contact Lift Pads Included
Specifications
- Capacity: 2,500 lbs.
- Min. Height: 4-3/4″
- Max Lifting Height: 43″
- Max Lifting Height with Pads: 49-1/4″
- Locking Heights: 28″, 36-1/2″, 42″
- Overall Length with Ramps: 67″ to 89″
- Overall Width: 24.8″
- Platform Size: 67″ x 24″
- Platform Size with Extensions: 89″ x 24″
- Pedestal Control Stand Dimensions: 15″ L x 11″ W x 39″ H
- Pedestal Platform Max Distance: 96″
- Lifting Time: 25s
- Lowering Time: 25s
- Power: 110V 60Hz 1Ph 18A
- Rubber Pad Dimensions: 4-3/4″ x 6.5″
- Shipping Weight: 740 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
