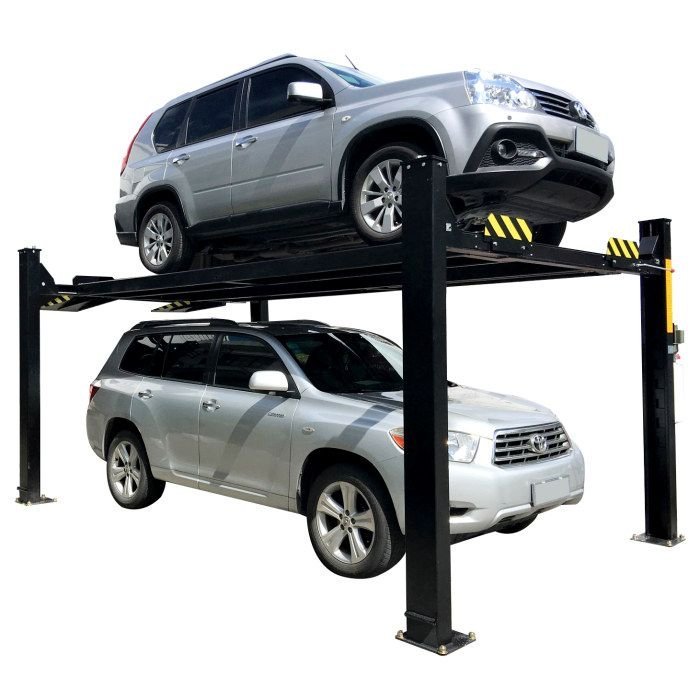

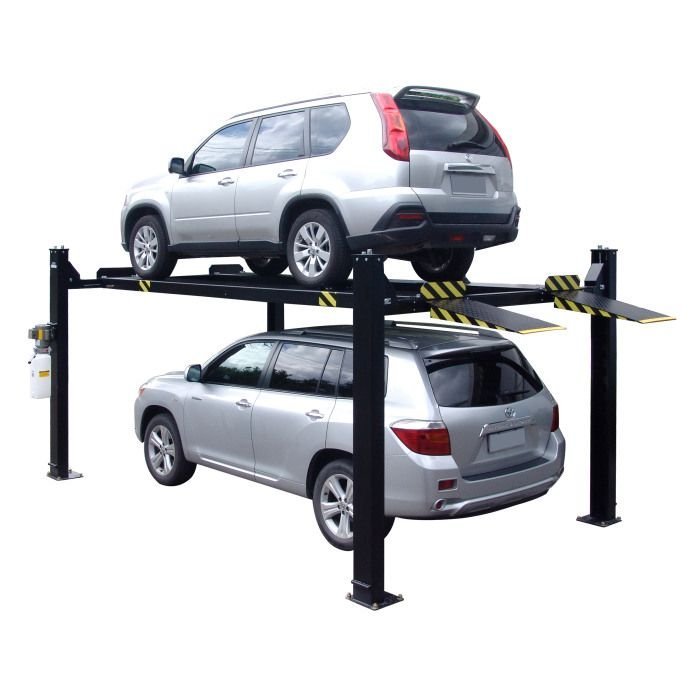

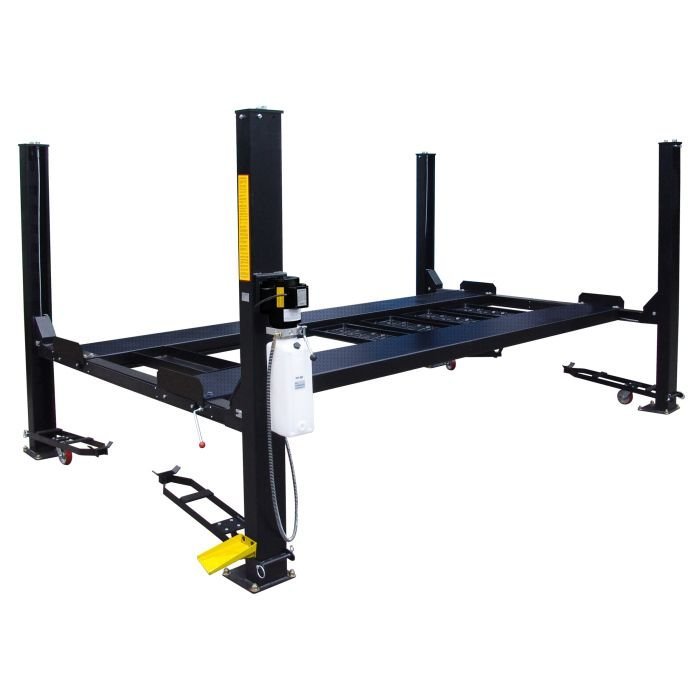

Tuxedo Four Post Vehicle Lift

The FP9K-DX-XLT Four Post Lift is designed and constructed to be a commercial grade lift, with industry leading runway length & drive-thru width, allowing the ability to either store or service large vehicles. In addition, the FP9K-DX-XLT comes standard with poly casters, drip trays & jack/tool tray, making it one of the best lift values in the industry!

Features

• 9,000 lbs. Capacity
• Commercial Grade Lift
• Heavy duty I beam construction cross-member
• Non-skid Diamond Plate Runways
• Adjustable Lock Ladder Leveling
• Single Point, Manual Lock Release
• Powder Coat Finish
• Steel Approach Ramps
• Comes Standard with Jack/Tool Tray for easy storage
• Comes Standard with Drip Trays (Set of 4)
• Comes Standard with Poly Caster Kit (Set of 4)

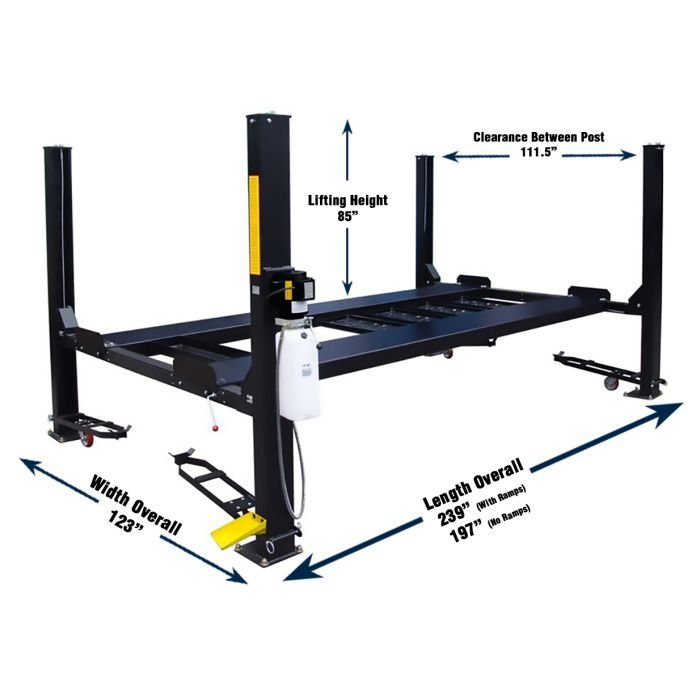

Specifications

• Lifting Capacity: 9,000 lbs.
• Lifting Height: 85″
• Overall Length w/Ramps: 239″
• Overall Length w/no Ramps: 197″
• Overall Width: 123″
• Overall Width w/Power Unit: 134.5″
• Approach Ramp Length: 37″
• Runway Tread Width: 20″
• Runway Length: 188.5″
• Runway Height: 4.80″
• Column Height: 97″
• Clearance between Columns: 111.5″
• Clearance between Runways: 39.5″
• Outside Runway to Outside Runway: 79″
• Clearance Under Runways: 81″
• Drive Thru Width: 99″
• Cable Thickness: 3/8″
• Locking Positions: 11
• Lifting Speed: 90s
• Power: 110V-15A,1PH (220V available – please specify when ordering)
• Shipping Weight: 2,365 lbs.
• Warranty: 5 Years Structure, 1 Year Parts, No Labor
