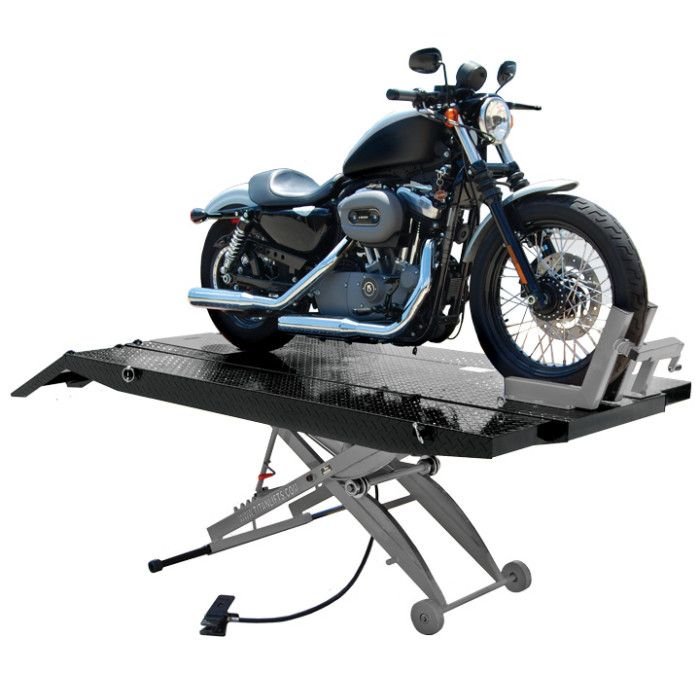

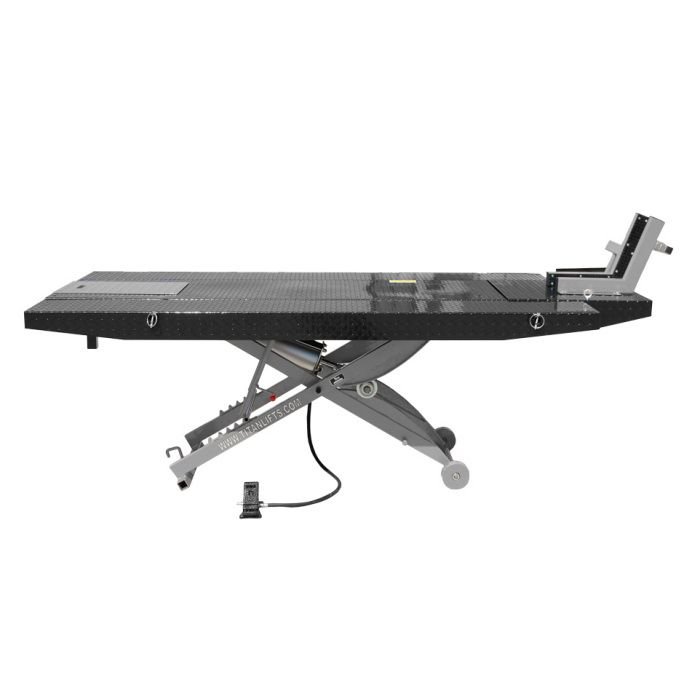

The Titan Lifts SDML-1000D-XLT Motorcycle ATV Lift comes fully equipped with front tire vise, front extension and side extensions which gives it a large enough platform to work on everything from motorcycles and ATVs to jet skis and snowmobiles. This heavy-duty diamond plated lift can handle up to 1,000 pounds with its 7″ air powered cylinder which raises the extra-large platform up to 33″.
Are you looking for an affordable motorcycle / ATV and other equipment lift platform that will hold up over time? We’ve seen so many of these products out there over the 20 years we’ve been in business that just won’t hold up to daily use. Well this one won’t disappoint you. Titan is known throughout the industry for their quality, and this lift table is the perfect example. Plus, it includes all the popular accessories that typically cost extra. Comes complete with side extensions, front extension, wheel vise, removable extended approach ramp, drop out panel for the rear wheel, and it’s totally portable. Just hook up shop air, and you’re ready to roll! So check out the specifications below and give us a call with any questions.
Features and Specs
What’s Included
- Front Wheel Vise
- Multi-Positional Front Table Extension
- Side Extensions
- Extended Ramp
- Stabilizer Bar
- Standard Rear Wheel Drop Out
- Roller Plate Drop Out
- Detachable Ramps
- Air Powered Lift Controls
- Two Wheeled Dolly
Front Extension Specifications
- Width w/Extensions: 48″
- Side Extensions: 11.75″ x 87.5″
- Length w/Front Extension (Position 1): 99″
- Length w/Front Extension (Position 1) & Ramp: 120″
- Length w/Front Extension (Position 2): 94.5″
- Length w/Front Extension (Position 2) & Ramp: 114.5″
- Length w/Front Extension (Position 3): 89.5″
- Length w/Front Extension (Position 3) & Ramp: 109.5″
- Front Extension: 24.5″ x 23.75″
Shipping Information
- Shipping Length: 91″
- Shipping Width: 27″
- Shipping Height: 23″
- Shipping Weight: 750 lbs.
Specifications
- GTIN / UPC Black/Grey: 091037956675
- Lifting Capacity: 1,000 lbs.
- Power Unit: Air Only
- Min Length: 87.5″
- Max Length: 99″
- Width: 24″
- Max Width: 48″
- Min Height: 8″
- Max Height: 33″
- Warranty: (1) Year Structure, (1) Year Hydraulic & Electrical Parts, No Labor
Titan Limited Warranty
Titan Standard Duty and Heavy Duty motorcycle lifts are backed by a standard 1 year replacement parts warranty from the date of purchase, to the original purchaser only. The 1 year replacement parts warranty covers power units, hydraulic cylinders, pneumatic cylinders, and all other assembly components such as, but not limited to: cables, caster wheels, valves, switches, wheel vises etc. This does not cover normal wear items such as but not limited to rubber wheel vise pads.
