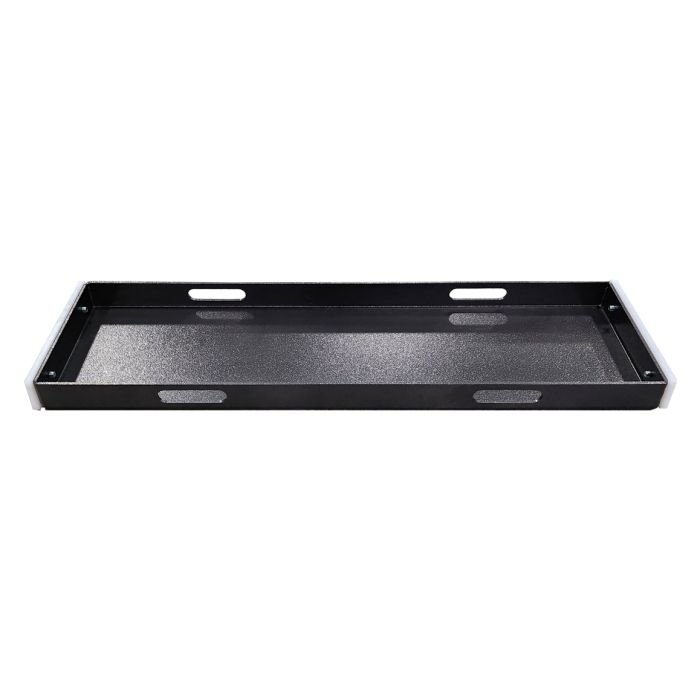

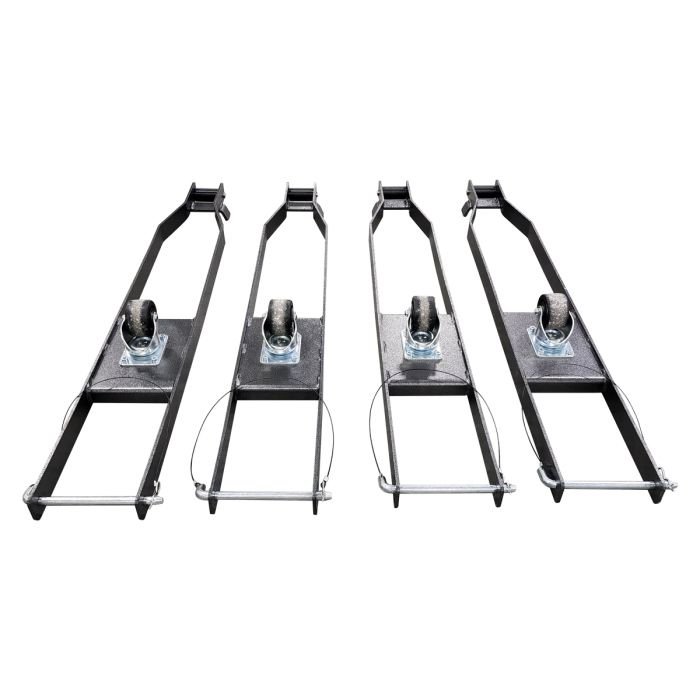

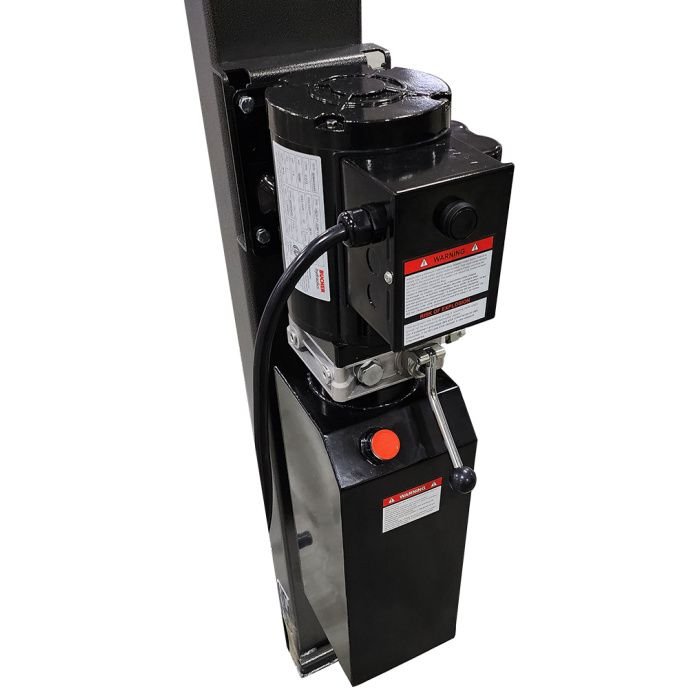

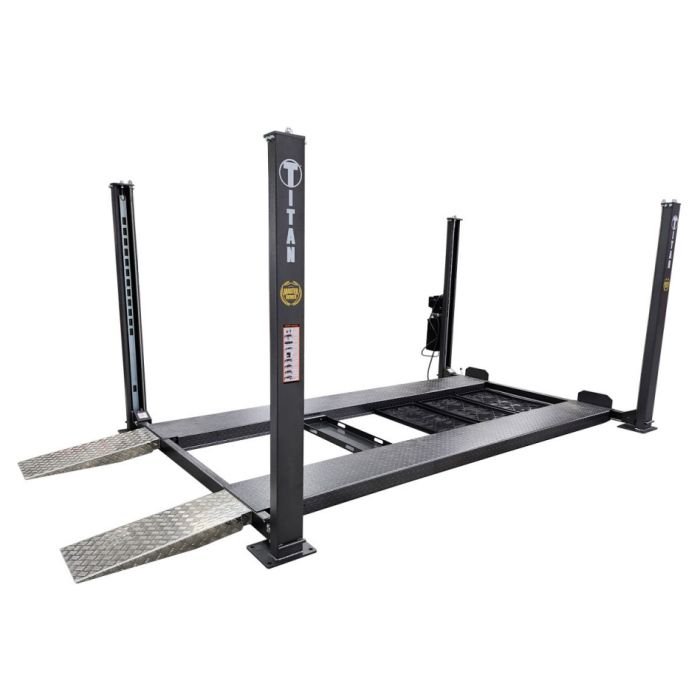

The Titan Master Series 4-post parking / storage lifts are an ideal choice for automotive enthusiasts needing extra garage space for a car, boat, lawn equipment, etc. The 110-volt motor allows for easy adaptation into a garage or workshop in any residential application. Easy operation lock release handle located by the power unit will minimize bending or squatting during operation. The internal linkage rods are sleek and hidden, while still accessible for adjustments if needed. This feature makes the Master Series a perfect lift for the individual who may work on their vehicle while on the lift. Includes aluminum ramp kit, caster kit, (3) drip trays, tool tray, and (2) wheel stop plates.
Features
- 8,000 lbs. Lifting Capacity
- Powder Coated Hammered Dark Finish
- Internal Linkage Rods
- Single Point Safety Lock Release Handle
- Metal Hydraulic Tank Reservoir
- Diamond Plated Steel One Piece Formed Runways
- Includes Aluminum Ramps, Caster Kit, Drip Trays, Tool Tray, and Wheel Stop Plates
- 6 Year Structural, 2 Year Electric / Hydraulic Warranty
Optional Accessories

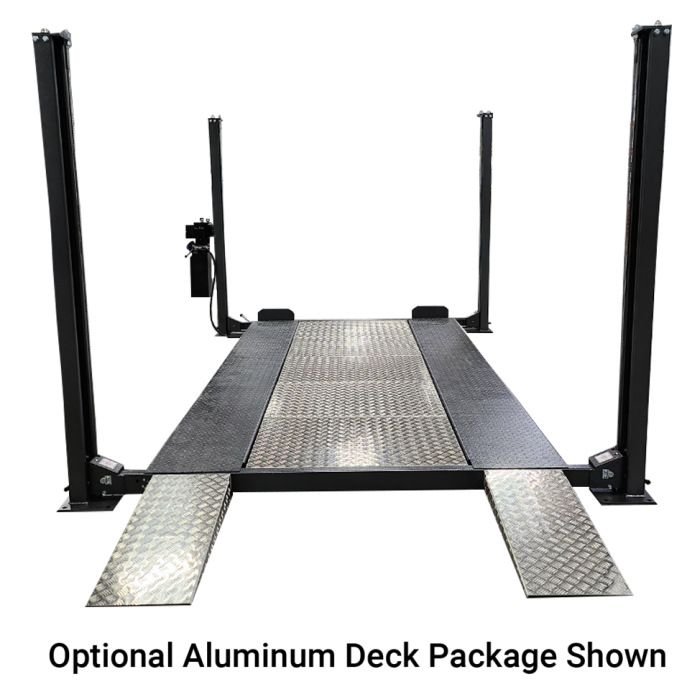

- Aluminum Center Deck Package
- Jack Tray
- Sliding Bridge Jack
Specifications
- Lifting Capacity: 8,000 lbs.
- Center Of Baseplates – Width: 99-5/8″
- Outside Of Baseplates – Width: 109-13/16″
- Outside Of Columns – Width: 107-1/16″
- Inside Of Columns – Width: 100-3/8″
- Overall Width with Motor: 122-5/8″
- Drive-Thru: 90″
- Between Runways: 43-1/2″
- Out To Out – Runways: 80-7/8″
- Length Of Runway: 160″
- Width Of Runway: 18-11/16″
- Total Length Of Ramp: 36-5/8″
- Baseplate Dimensions: 11-13/16″ x 10-1/4″
- Column Dimensions: 3-3/8″ x 6-5/16″
- Center Of Baseplates – Length: 158-1/16″
- Outside Of Baseplates – Length: 169-7/8″
- Outside Of Columns – Length: 164-3/8″
- Inside Of Columns – Length: 151-3/4″
- Overall Length with Ramps: 201-7/16″
- Lifting Height: 4-1/2″ – 76-3/4″
- Overall Height: 83-9/16″
- Shipping Dimensions: 164″ L x 23″ W x 45″ H
- Shipping Weight: 1,667 lbs.
- Warranty: (6) Years on Structure, (2) Years on Electric / Hydraulic, No Labor
