Description

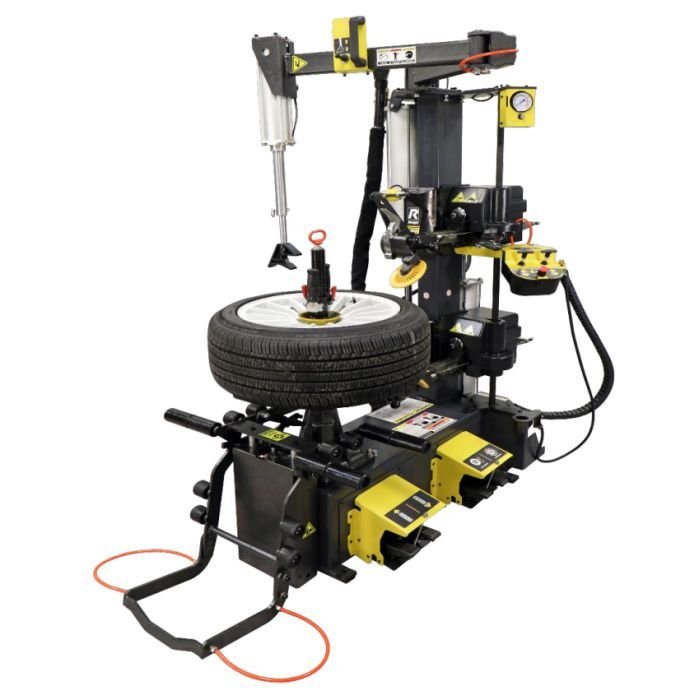

RV1 Guardian Tire Changer: Revolutionary Offering by Ranger!

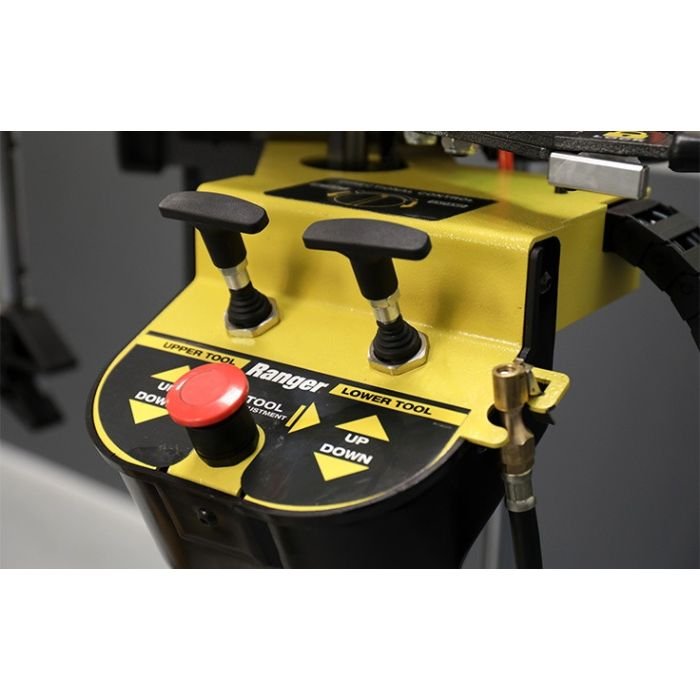

The Ranger RV1 Wheel Guardian features the latest in touchless wheelservice technology and provides your shop with the most advanced tire changing capabilities on the planet. You no longer need them those tire irons and levers, so put them away! The RV1 is a workhorse designed to work on all wheels types without damaging the rim or requiring clumsy toolbars, bead locks or tire levers.Why risk the chance of damaging expensive wheels when you can go touchless? With the Ranger RV1 Wheel Guardian, tire irons and levers become a thing of the past. The unique reversible tool head effortlessly mounts and dismounts the most stubborn tires without ever making contact with the wheel. Ergonomic joystick control features with a precision actuator, allowing you to inch the bead hook or lifting tip into position for gentle handling of delicate alloy wheels.
Take your pick: a durable nylon tool head or hardened steel tool head with replaceable nylon inserts. Both come standard, giving you the option to choose just the right tool to make those delicate services as simple as can be.
Features and Specs
Includes
Inflation System
Inflation Pressure Regulator / Limiter
Top Power Assist Bead Roller
Water Filter / Oiler / Lubricator
Air Regulator
Tire Inflation Gauge
Large Soap Bucket / Brush
Specifications
Style: Fixed Tower Design
Assist Type: Single-Tower Assist
Speed: Standard
Rim Diameter Range: 13″ – 30″ (330 mm – 762 mm)
Maximum Tire Diameter: 47″ (1,194 mm)
Maximum Wheel Width: 15″ (381 mm)
Max Tire Weight: 143 lbs. (65 kg)
RPM of Turntable: 7 – 14 turns/min
Motor Power: 1.1 kW / 24A / NEMA 30 amp plug
Motor Specs: 3 HP / 208-240V / 1 Ph / 50/60Hz
Air Supply Requirements: 140 -165 psi (10 -11 bar)
Air Consumption: 1 SCFM / 27 L/Min
Overall Width: 34″ (864 mm)
Overall Height: 73″ (1,854 mm)
Overall Depth: 71″ (1,803 mm)
Mount / Demount Tool: Steel-Alloy with Polymer Guards / Leverless
Clamping Type: Center Post with Quick Clamp
Bead Loosening Type: Upper / Lower Roller
Shipping Dimensions: 61″ x 35″ x 80″ (1,550 mm x 900 mm x 2,030 mm)
