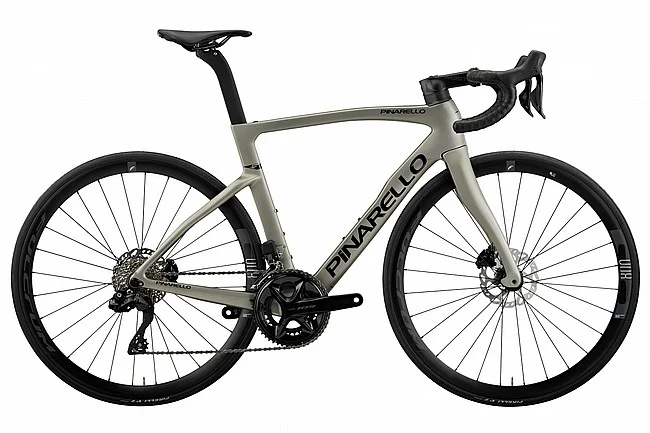

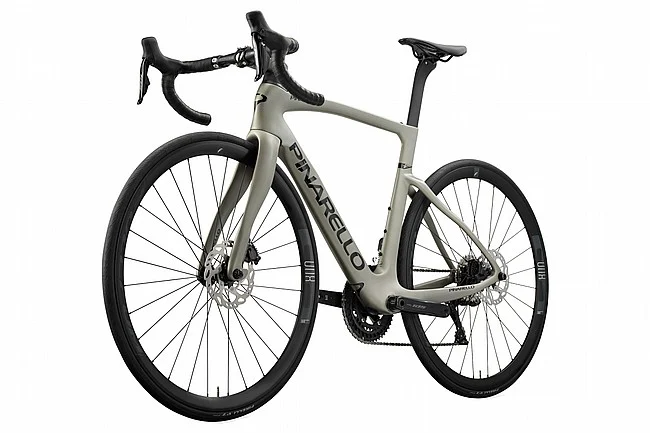

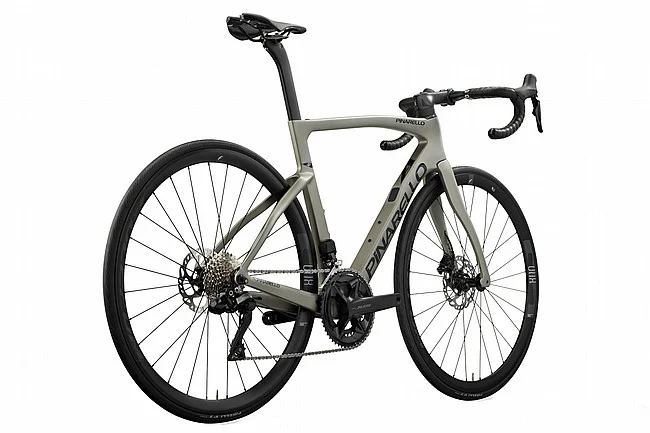

Pinarello F5 Disc 105 Di2 Road Bike

Born To Race, No Discussion

Pinarello’s history is one of extraordinary victories, iconic bicycles, passion, and expertise, and the Pinarello F5 Disc 105 Di2 was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. Pinarello F series bikes are designed to excel on all terrain and are as adept at climbing as they are comfortable on a high-speed descent.

The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun. A distinctive Pinarello Technology since 2000, the shape of the Onda fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

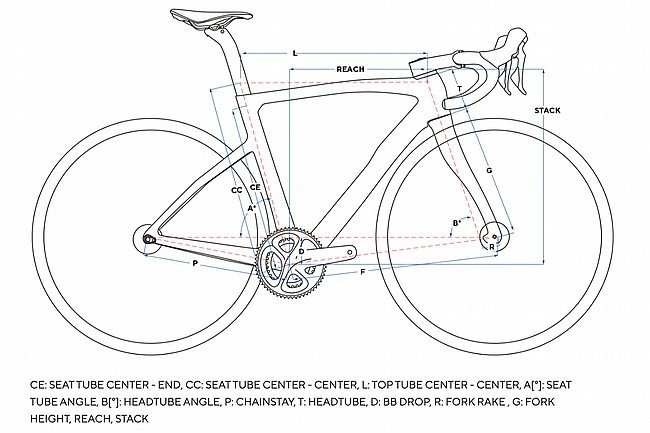

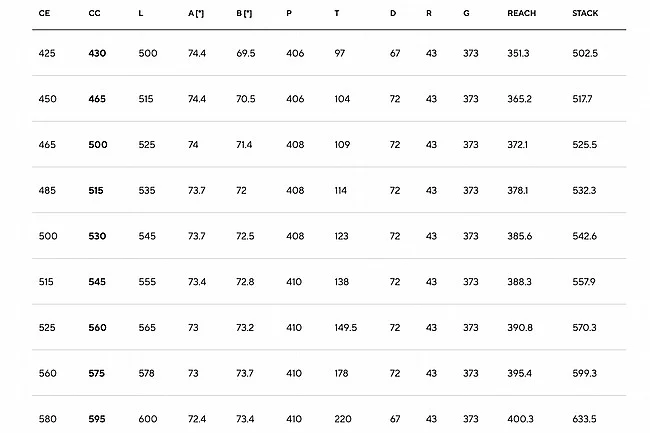

Competition Geometry

30 grand tours have been won on Pinarello bikes. 70 years of victories and continuous improvements have been distilled into what possibly the best race geometry in the industry.

From the start, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are asymmetrical and optimized to compensate these unbalanced forces.

Features:

• • T700 Toray Carbon Fiber: Combining the perfect mix of different types of HM (high modulus) and HT (high strength) fibers to achieve the ultimate balance of rigidity and vibration absorption.
  • TiCR: The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.
  • Shimano 105 Di2 2x12spd Groupset

• Frame: Torayca T700 UD Carbon, TiCR™ internal cable routing, Italian BB, 12x142mm TA
• Fork: Onda fork, tapered head tube, 12x100mm TA
• Handlebar: MOST Jaguar XA Aero TiCR; 430-515: 420mm; 530-545: 440mm; 560-595: 460mm
• Bar Tape: MOST Ultragrip Evo 3mm – Black
• Stem: MOST Tiger Alu TiCR; 430-465: 90mm; 500: 100mm; 515-530: 110mm; 545-560: 120mm; 575-595: 130mm
• Shift/Brake Levers: Shimano 105 Di2 ST-R7170 2x12s
• Brakes: Shimano 105 BR-R7170, 160mm F/R
• Front Derailleur: Shimano 105 Di2 FD-R7150
• Rear Derailleur: Shimano 105 Di2 RD-R7150
• Crankset: Shimano 105 FC-R7100 52/36t; 430-515: 170mm; 530-560: 172.5mm; 575-595: 175mm
• Cassette: Shimano CS-R7101 11-34t
• Chain: Shimano CN-M7100 12s
• Wheelset: Fulcrum Racing 800
• Exact components subject to availability. Photos are indicative of FRAME ONLY
