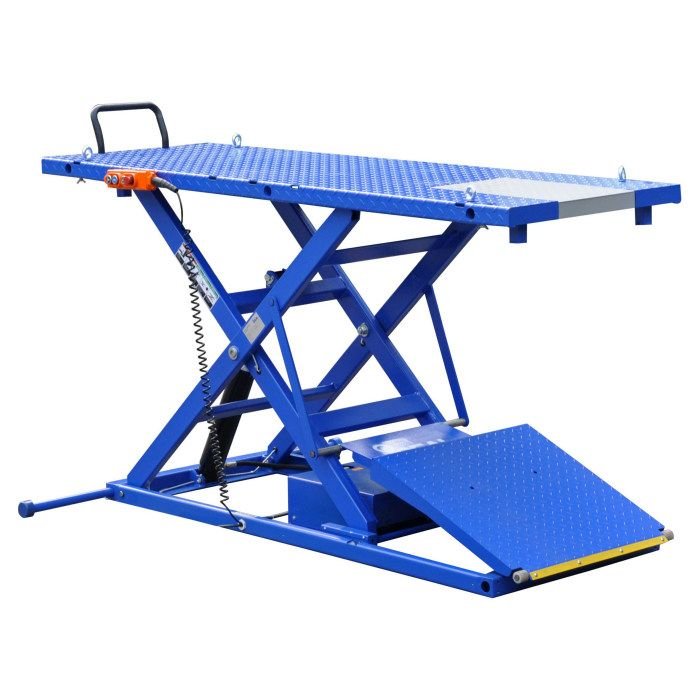

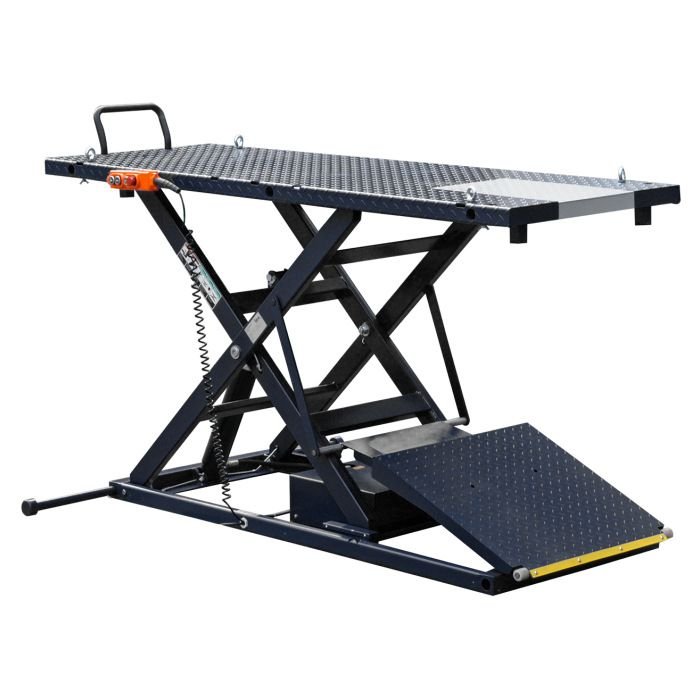

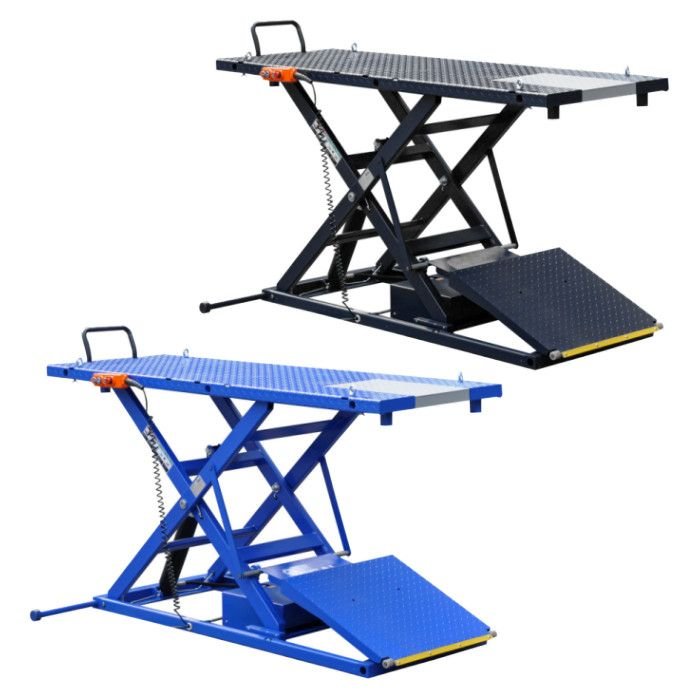

M-2200IEH-XR Pro Series Power Sport Motorcycle Lift features our innovative retractable approach ramp system which automatically retracts the approach ramp from the work space while the lift is rising. A spring loaded drop down panel for improved rear wheel service access is integrated into the table. The drop down panel swings out of the way and quickly clips back into place when not in use. The single point hand held magnetic pendant fully controls the lift: lifting, lowering into locks, and lowering without the use of hands or feet to disengage manual safety latches. With all these great features the M-2200IEH-XR is the complete package for a premium, high quality all terrain vehicle lift at a great value! The M-2200IEH-XR is available in blue or black.
Industry leading platform size and weight capacity with smooth and quiet hydraulic operation. Great for large to small motorcycles!
The . 2200IEH-XR is a 2,200 lbs. lifting capacity Motorcycle Lift Table is designed to confidently lift the heaviest motorcycles using a frame mounted 110V electric hydraulic power unit to eliminate power unit stands and excess hose. New standard innovative retractable ramp design pulls ramp into the lift during lifting which saves space and eliminates the need to remove the ramp for service. The M-2200IEH-XR is operated using a hand held pendant for both raising and lowering operation eliminating the need to manually release locks. With 47″ of lift height and extended length and width platform the M-2200IEH-XR is up to the task of lifting any motorcycle that requires lifting to properly service. Wheel Chock and Vise Sold Separately.
With all these great features the M-2200IEH-XR is the complete package for a premium, high quality motorcycle lift at a great value!
Features and Specs
Features
- New! Retractable Ramp System
- 2,200 lbs. Capacity
- 47″ Rise Height
- 110V Integrated Electric / Hydraulic Power Unit
- Hand Held Control Pendant for Operation and Lock Release
- Magnetic Lock Release
- (6) Locking Height Positions
- Extended 27.5″ Long Full Width Approach Ramp
- 31.5″ x 88.6″ Platform
- Rear Drop Down Service Panel
- Stabilizer Bar
- Wheel Stops
- Tie-Down Anchor Eye Bolts
- High Quality Construction with Durable Powder Coat Finish
- Heavy-Duty Diamond Plate Platform and Extensions
- Smooth and Quiet 110V Electric / Hydraulic Operation – No Compressor Required
Optional Accessories
- Motorcycle Vise
- Motorcycle Jack
- Self Locking Cycle Wheel Chock
- Front Extension Panel
- Dolly and Wheel Kit
- ATV Extension Kit
- TRIKE Extension Kit
- UTV Extension Kit
Specifications
- Capacity: 2,200 lbs. (1,000 kg)
- Max Lifting Height: 47.2″ (1200mm)
- Min. Height: 7″ (180mm)
- Locking Heights: 25.5″ 30.5″ 35″ 39″ 43.5″ 47″
- Overall Width: 58.5″ (1486mm)
- Overall Length: 116.5″ (2959mm) – Fully Lowered
- Platform Length: 88.6″ (2250mm)
- Platform Width: 31.5″ (800mm)
- Power Supply: 110V 60Hz 1Ph 18A
- Lifting Time: 30s
- Lowering Time: 30s
- Gross Weight: 790 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
