*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
|

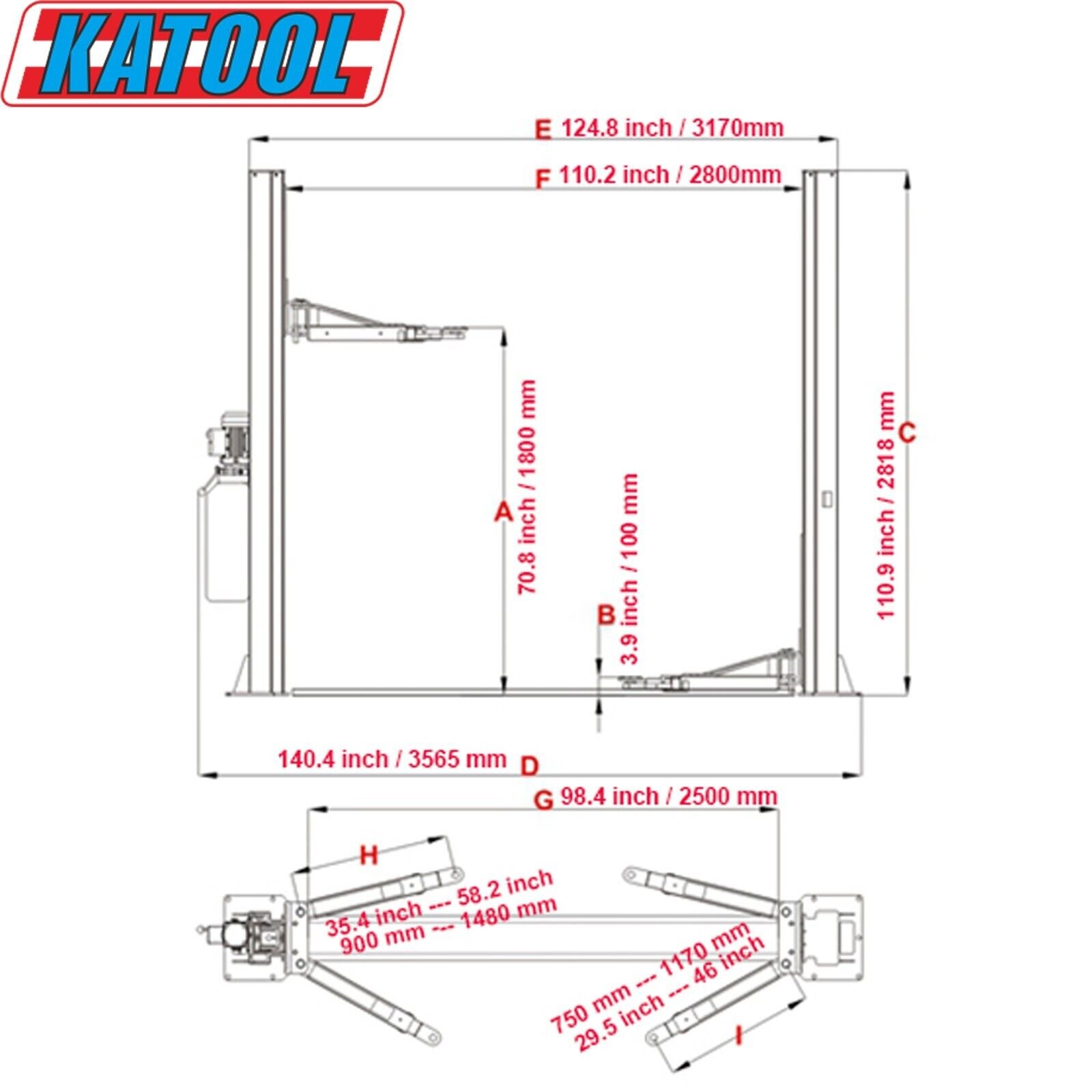

Lifting Capacity
|
10000lbs.(4500KG)
|
|
Max. Lifting Height
|
70.8″/1800mm
|
|
Min. Height
|
3.9″/100mm
|
|
Height Overall
|
110.9″/2818mm
|
|
Width Overall
|
140.4″/3565mm
|
|
Outside Column
|
124.8″/3170mm
|
|
Inside Column
|
110.2″/2800mm
|
|
Dirve-Thru Clearance
|
98.4″/2500mm
|
|
Front Arm Reach(Min)
|
29.5″/750mm(2 stages)
|
|
Front Arm Reach (Max)
|
46″/1170mm(2 stages)
|
|
Rear Arm Reach(Min)
|
35.4″/900mm(2 stages)
|
|
Rear Arm Reach(Max)
|
58.2″/1480mm(2 stages)
|
|
Motor
|
220VAC/60HZ/1PH/2.2KW
|
|
Net Weight
|
570KG
|
