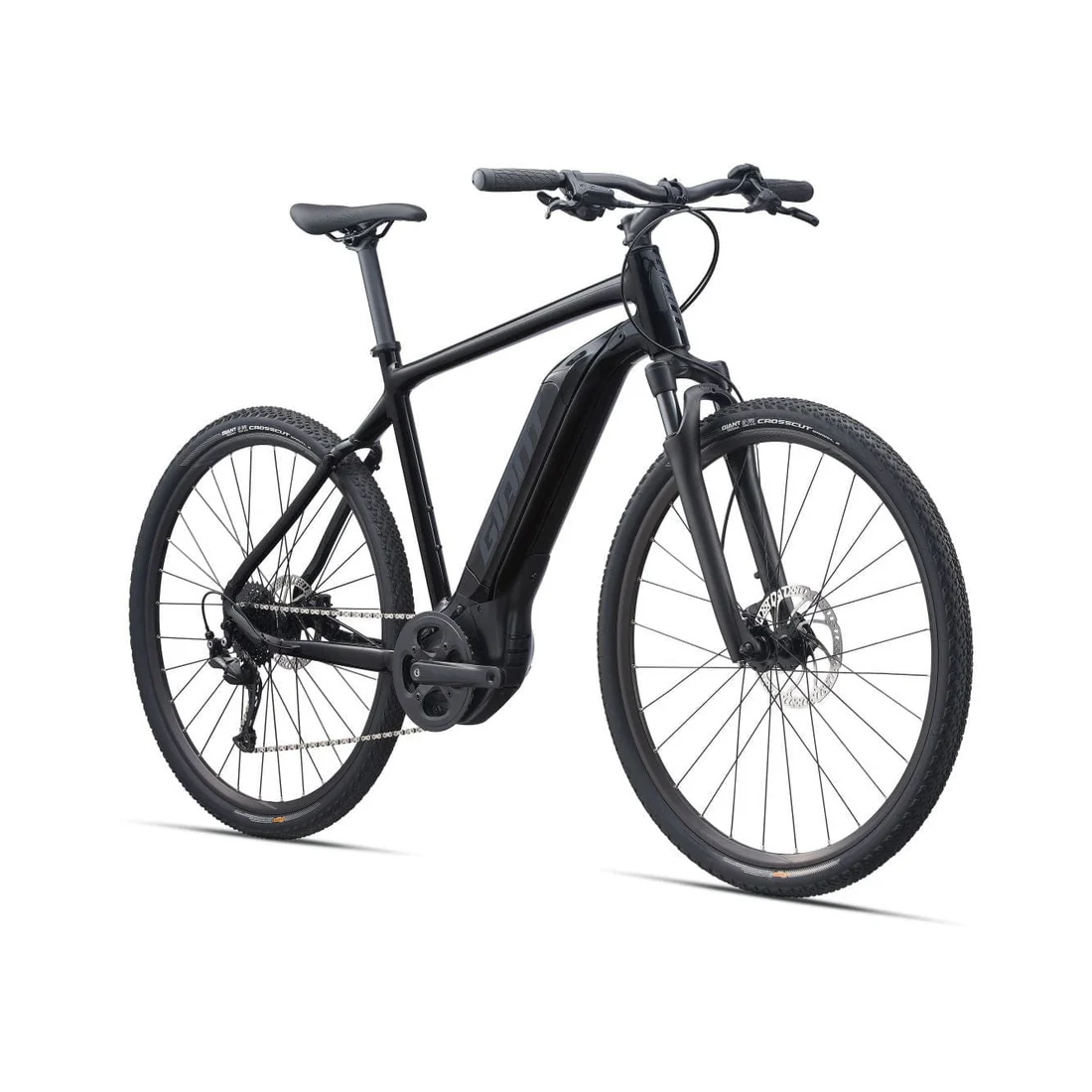

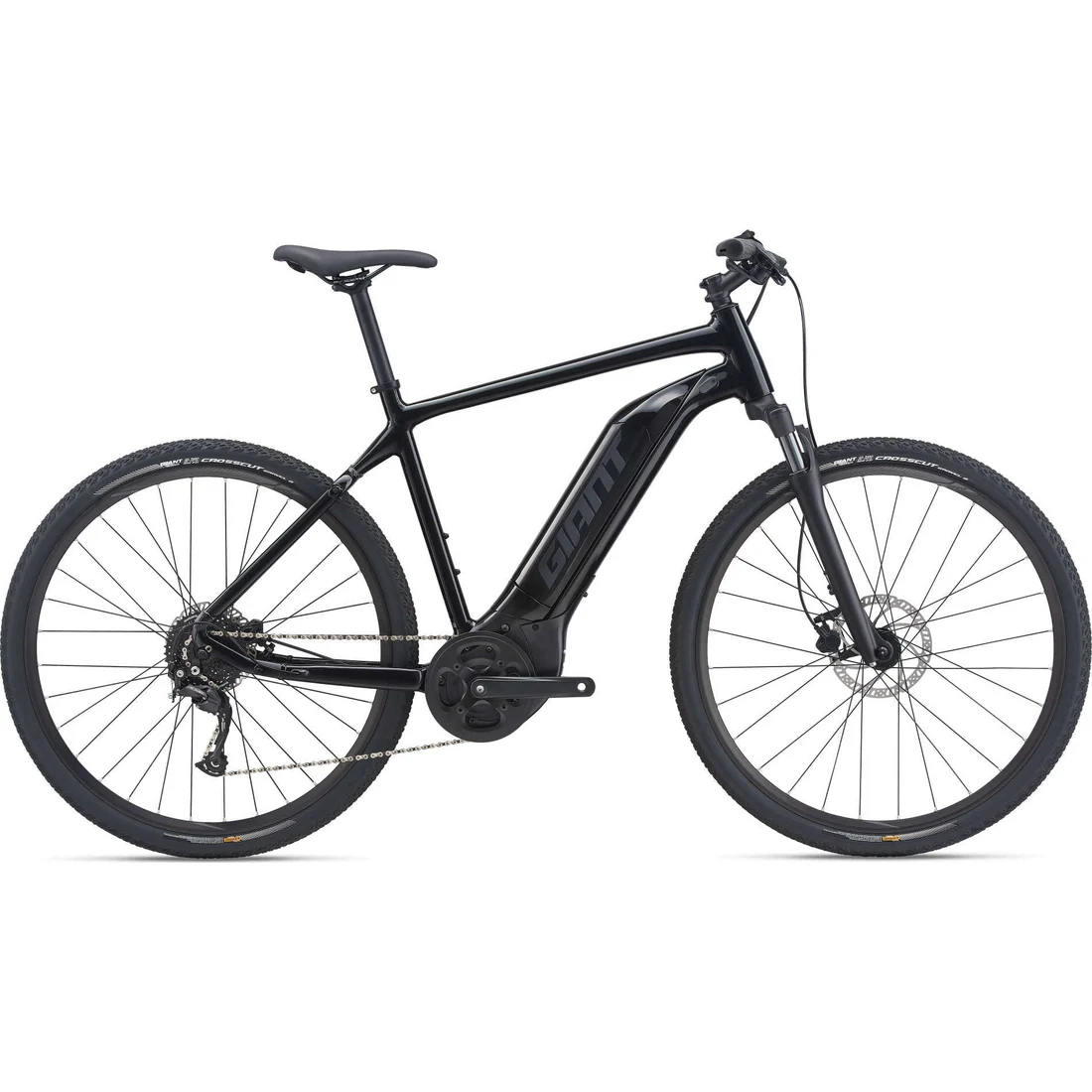

Choose a route, any route. With it’s all-road capabilities and smooth, natural pedaling support, this versatile e-bike helps you ride smooth roads, rough roads, bike paths or trials.
All-road capabilities
Powerful SyncDrive Core motor, light and durable ALUXX SL aluminum frame, and wider tires give you the ability to ride any road, any route.
Comfort and control
63mm suspension fork,wider tires and flat handlebar positioning improve comfort and stabilityon rough roads or paths.
Longer range
Long-lasting EnergyPak Smart 400 battery allows you to ride farther without running out of power.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
| Range | ||
| Extreme: 34 miles | Good: 65 miles | Ideal: 93 miles |
Specifications
| Motor: SyncDrive Core, 50Nm, Powered by Yamaha | Pedals: PP Pedal |
| Controller: RideControl One Ant+ | Shifters: Shimano Altus |
| Display: ANT+ Wireless display compatible | Front Derailleur: N/A |
| Battery: EnergyPak 400Wh | Rear Derailleur: Shimano Alivio, 9-speed |
| Sizes: S, M, L, XL | Brakes: Tektro HD-M275, hydraulic disc, 160/180mm |
| Colors: Black | Brake: LeversTektro HD-M275 |
| Frame: ALUXX Aluminum, Overdrive 1Ā½ – 1ā ” head tube, integrated KS18 kickstand mount | Cassette: Shimano CS-HG200, 11-36T, 9-speed |
| Fork: SR Suntour NEX E25 63mm travel | Chain: KMC e.9 Sport, e-bike optimized |
| Shock: N/A | Crankset: Forged Alloy minimal Q-factor, 42T |
| Handlebar: Giant Connect Riser 31.8x620mm | Bottom Bracket: N/A |
| Grips: Giant Connect Ergo | Rims: Giant GX03V, 622x21mm Aluminium |
| Stem: Giant Contact | Hubs: Giant eTracker, [F] 100x9mm QR [R] 135mm QR |
| Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium | Spokes: Stainless steel |
| Saddle: Giant Sport Comfort | Tires: Giant Crosscut Gravel 2, 700x45c (622×45), Tubeless Ready W/O Reflex (GU: w/reflex) |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTHĀ (inch) | 17.1 | 19.1 | 21.1 | 23 |
| SEAT TUBE ANGLE | 74.0Ā° | 73.0Ā° | 73.0Ā° | 73.0Ā° |
| TOP TUBE LENGTHĀ (inch) | 22.4 | 23.2 | 24 | 24.8 |
| HEAD TUBE LENGTHĀ (inch) | 5.1 | 5.5 | 6.1 | 6.7 |
| HEAD TUBE ANGLE | 69.5Ā° | 69.5Ā° | 69.5Ā° | 69.5Ā° |
| FORK RAKEĀ (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAILĀ (inch) | 3.6 | 3.6 | 3.6 | 3.6 |
| WHEELBASEĀ (inch) | 43.8 | 44.1 | 45 | 45.8 |
| CHAIN STAY LENGTHĀ (inch) | 17.9 | 17.9 | 17.9 | 17.9 |
| BOTTOM BRACKET DROPĀ (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| STACKĀ (inch) | 24 | 24.4 | 24.9 | 25.5 |
| REACHĀ (inch) | 15.6 | 15.7 | 16.4 | 17 |
| STAND OVER HEIGHTĀ (inch) | 29.3 | 30.5 | 31.8 | 33.2 |
| HANDLEBAR WIDTHĀ (inch) | 27.2 | 27.2 | 27.2 | 27.2 |
| STEM LENGTHĀ (inch) | 2.4 | 2.8 | 3.1 | 3.5 |
| CRANK LENGTHĀ (inch) | 6.7 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE | 700C | 700C | 700C | 700C |
