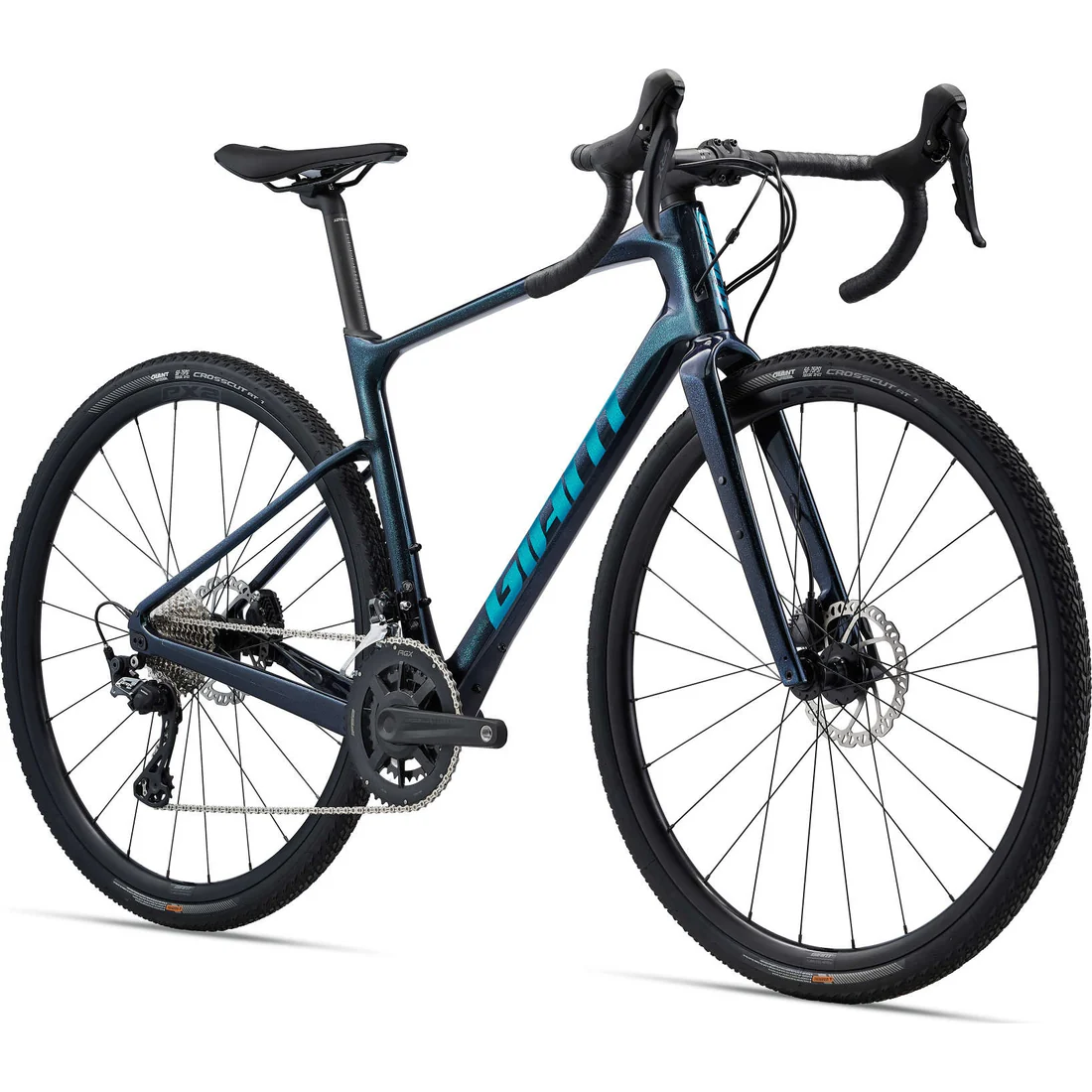

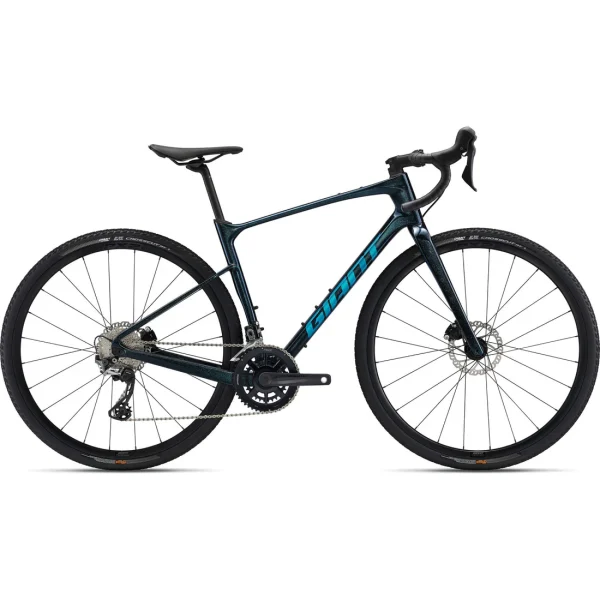

Giant Revolt Advanced 2 Gravel Road Bike 2022 For Sale
Looking for a bike that can handle any terrain? Look no further than the Revolt Advanced 2 Gravel Road Bike! This bad boy is fast and agile, perfect for both smooth pavement and rough gravel.
With a new composite frame and adjustable wheelbase, it’s more capable than ever before. Plus, the advanced geometry gives you improved acceleration and climbing power. But don’t worry about discomfort – the dropped seatstays and D-Fuse handlebar and seatpost work together to give you a smooth ride, no matter how bumpy the road gets. And with a flip chip on the rear dropout, you can adjust the wheelbase to suit your needs.
This bike is also adaptable to any riding style – choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post. So, whether you’re going for speed or comfort, the Revolt Advanced 2 Gravel Road Bike has got you covered.
Fast and light
New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
Tuned compliance
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Specifications
| Sizes XS, S, M, M/L, L, XL |
| Colors Starry Night / Chameleon Neptune, Panther / Chameleon Saturn |
| Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
| Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock N/A |
| Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips Stratus Lite 3.0 |
| Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost Giant D-Fuse, composite, 14mm offset |
| Saddle Giant Approach |
| Pedals N/A |
| Shifters Shimano GRX RX-600, 2×11 |
| Front Derailleur Shimano GRX RX-810 |
| Rear Derailleur Shimano GRX RX-810 |
| Brakes Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers Shimano GRX RX-600 hydraulic |
| Cassette Shimano 105, 11-speed, 11×34 |
| Chain KMC X11SL-1 |
| Crankset FSA Omega AGX, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket Praxis, press fit |
| Rims Giant P-X2 Disc wheelset |
| Hubs Giant P-X2 Disc wheelset |
| Spokes Giant P-X2 Disc wheelset |
| Tires Giant CrossCut AT 1, 700x38c, tubeless |
| Extras tubeless prepared, 53mm max tire size in “long” flip chip position, 42mm max tire size in “short” flip chip position |
| Weight The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| SEAT TUBE LENGTH (inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (inch) | 21.3 | 21.7 | 22 | 22.6 | 23 | 23.6 |
| HEAD TUBE LENGTH (inch) | 4.9 | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| FORK RAKE (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| TRAIL (inch) | 3.1 | 3.2 | 2.8 | 3 | 2.7 | 2.8 | 2.6 | 2.7 | 2.6 | 2.7 | 2.6 | 2.7 |
| WHEELBASE (inch) | 40.3 | 40.7 | 40.2 | 40.6 | 40.4 | 40.8 | 40.6 | 41 | 41 | 41.4 | 41.6 | 42 |
| CHAIN STAY LENGTH (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 |
| BOTTOM BRACKET DROP (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| STACK (inch) | 21.9 | 22.4 | 23.1 | 23.7 | 24.3 | 24.8 |
| REACH (inch) | 15 | 15 | 15.2 | 15.4 | 15.6 | 16 |
| STAND OVER HEIGHT (inch) | 28.5 | 28.8 | 29.1 | 29.4 | 29.8 | 30.1 | 30.5 | 30.7 | 31.1 | 31.4 | 31.8 | 32 |
| HANDLEBAR WIDTH (inch) | 16.5 | 16.5 | 17.3 | 17.3 | 18.1 | 18.1 |
| STEM LENGTH (inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| CRANK LENGTH (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
