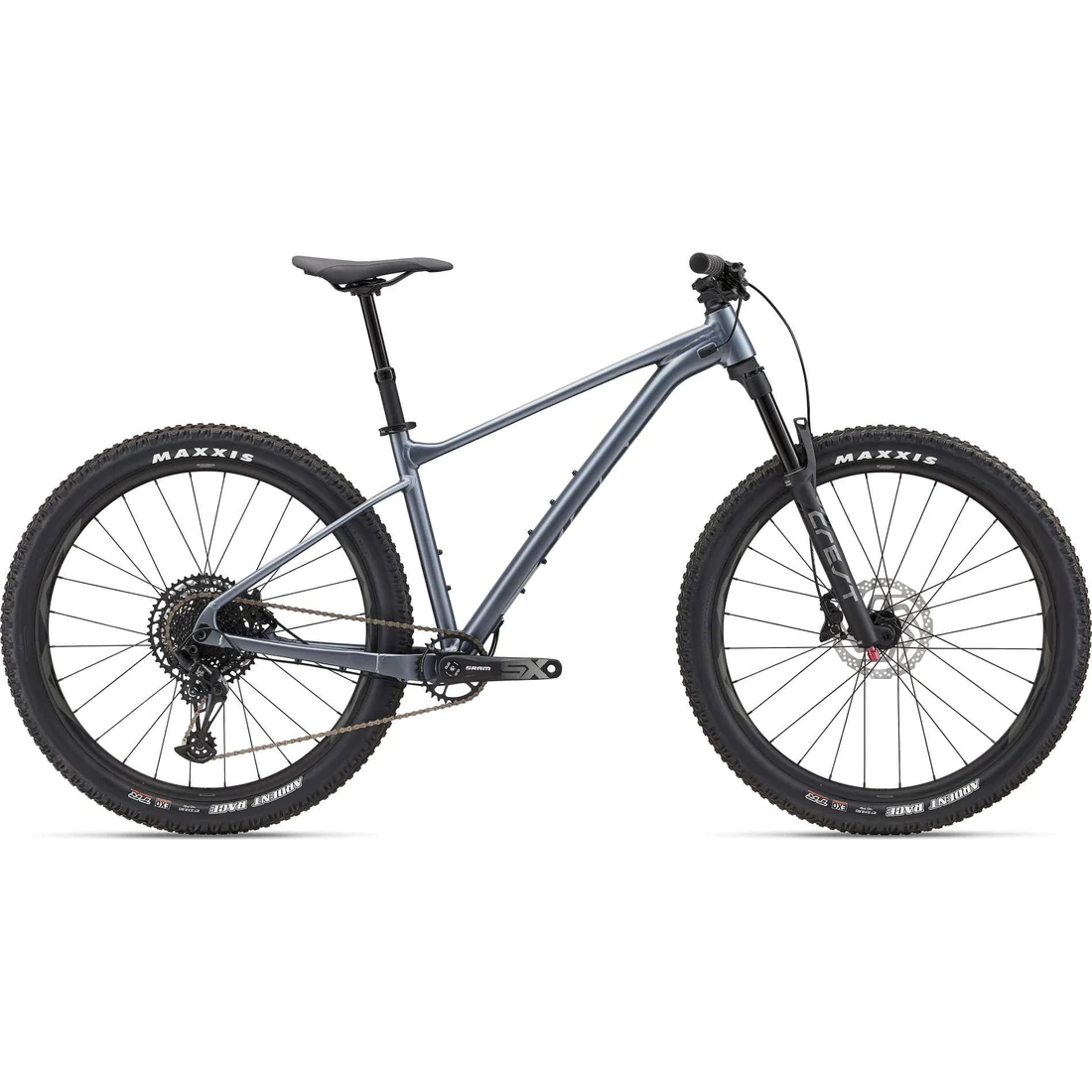

Giant Fathom 1 27.5 Mountain Bike 2022 For Sale
Are you ready to rip up those trails and get your adrenaline pumping? The Fathom 1 hardtail bike is here to give you your daily dose of singletrack excitement!
Let’s start with the lightweight frame. You won’t even feel like you’re carrying a bike around, making those uphill climbs a breeze. And with 130mm suspension fork, those pesky rocks and bumps won’t stand a chance against your smooth ride.
Now onto the real fun stuff – those 27.5 wheels with high-volume tires! You’ll feel like you’re flying as you hit top speeds and shred through those turns with ease. And with loads of traction, you can take on any terrain that comes your way.
Overall, the Fathom 1 is the perfect bike for any thrill-seeker looking to tackle some serious trails. Get ready to experience a whole new level of speed, control, and fun on your next ride.
Trail tuned design
Balanced geometry with a 75-degree seattube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.
Responsive handling
Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner and hammer the flats with efficiency and speed.
Smooth control

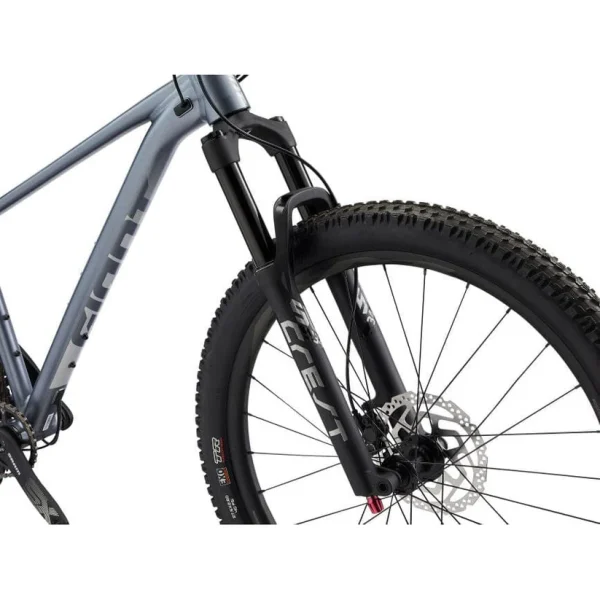

Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.
Specifications
| Sizes S, M, L, XL | Front Derailleur N/A |
| Colors Knight Shield | Rear Derailleur SRAM NX Eagle |
| Frame ALUXX SL-Grade Aluminum | Brakes Shimano BR-MT420/410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
| Fork Giant Crest 34 SL RCL, 130mm, 44mm offset, Boost 15×110 | Brake Levers Shimano BR-MT401 |
| Shock N/A | Cassette SRAM SX Eagle, 11×50 |
| Handlebar Giant Contact TR35, 780x35mm | Chain SRAM SX Eagle |
| Grips Giant Sole-O | Crankset SRAM SX Eagle, 30t S:165mm, M:170mm, L:170mm, XL:170mm |
| Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm | Bottom Bracket SRAM DUB, press fit |
| Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm | Rims Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width |
| Saddle Giant Romero | Hubs alloy, sealed |
| Pedals platform [GC,GT] | Spokes stainless |
| Shifters SRAM SX Eagle, 1×12 | Tires Maxxis Ardent Race 27.5×2.6, folding, TR |
| Weight The most accurate way to determine any bike’s weight is to have stop into Bicycle Warehouse so we can weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTHÂ (inch) | 15 | 16.9 | 18.3 | 19.5 |
| SEAT TUBE ANGLE | 75.0° | 75.0° | 75.0° | 75.0° |
| TOP TUBE LENGTHÂ (inch) | 23.3 | 24.1 | 25.2 | 26.1 |
| HEAD TUBE LENGTHÂ (inch) | 3.7 | 3.7 | 4.1 | 4.5 |
| HEAD TUBE ANGLE | 66.0° | 66.0° | 66.0° | 66.0° |
| FORK RAKEÂ (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAILÂ (inch) | 4.4 | 4.4 | 4.4 | 4.4 |
| WHEELBASEÂ (inch) | 45.4 | 46.2 | 47.4 | 48.3 |
| CHAIN STAY LENGTHÂ (inch) | 17.1 | 17.1 | 17.1 | 17.1 |
| BOTTOM BRACKET DROPÂ (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| STACKÂ (inch) | 24.5 | 24.5 | 24.8 | 25.2 |
| REACHÂ (inch) | 16.7 | 17.5 | 18.5 | 19.3 |
| STAND OVER HEIGHTÂ (inch) | 28 | 28.6 | 29.4 | 30.4 |
| HANDLEBAR WIDTHÂ (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| STEM LENGTHÂ (inch) | 1.6 | 1.6 | 2 | 2 |
| CRANK LENGTHÂ (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE | 27.5″ | 27.5″ | 27.5″ | 27.5″ |
