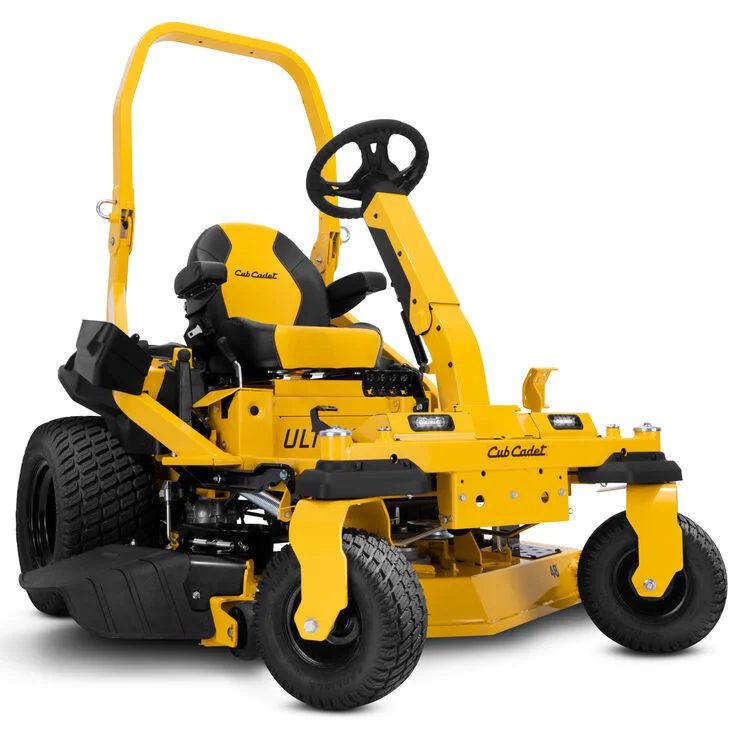

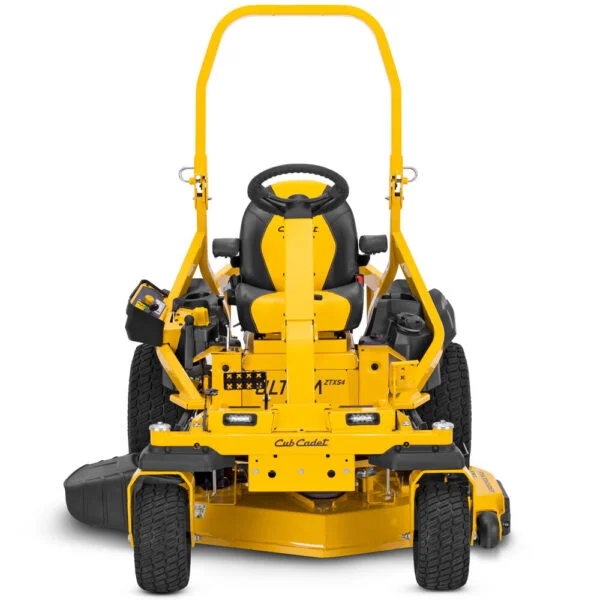

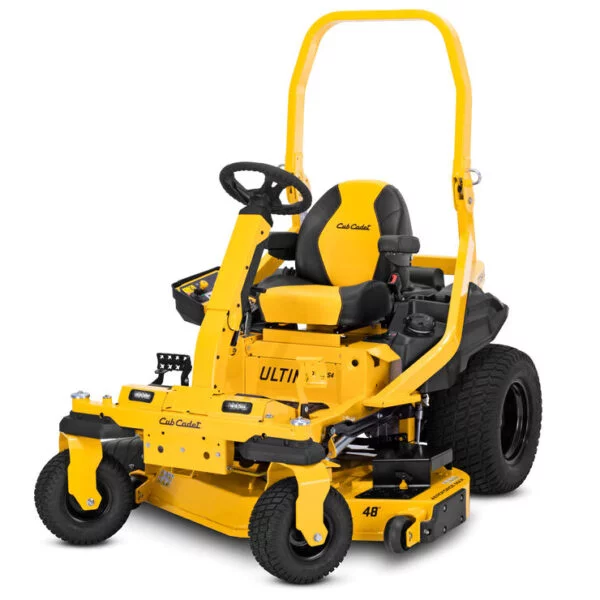

Cub Cadet Ultima Series ZTXS4 48 48-in. 24 HP

The Cub Cadet® Ultima Series ZTXS4 48 48-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Synchro-Steer offers 4-wheel control designed to provide stability for straight line mowing on hillsides and slopes up to 20-degrees.

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 24 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish

• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defence system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
• Zero-Turn Mower

ZTXS4 48 Features:

• Excellent Stability On Hills
• Premium Cut
• Strong, Durable Frame
• Turf Master® Tires
• Ride In Comfort
• Easy Maintenance
• Strong Warranty

Specs & Maintenance

Engine

• Engine Brand: Kohler®
• Engine Model: Pro 7000 series
• Engine Model Number: KT735
• Engine Displacement: 725cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2 qt US ( 1.89 L)
• Lubrication: Fully pressurised
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3100
• Forward Speed: 8 MPH / 12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 48 in
• Deck Wash:No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1″ – 4.75″
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

Chassis

• Frame: 1.5″ x 3″ tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20″ high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels

• Rear Tires: 22″x 12″-12″
• Front Tires: 13″x 6.5″-6″
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTXS

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Foot Controlled
• Model Number: 47TSCAB6A10

Warranty

• Residential Warranty: 4-year 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited

Commercial Warranty: 4-year 800 hours
