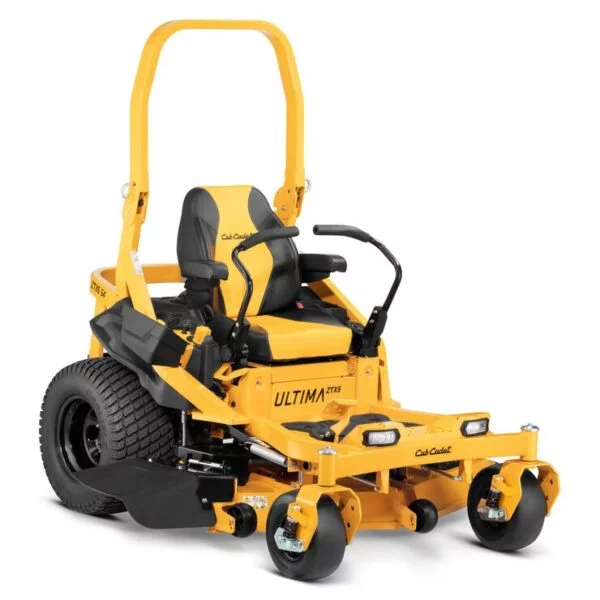

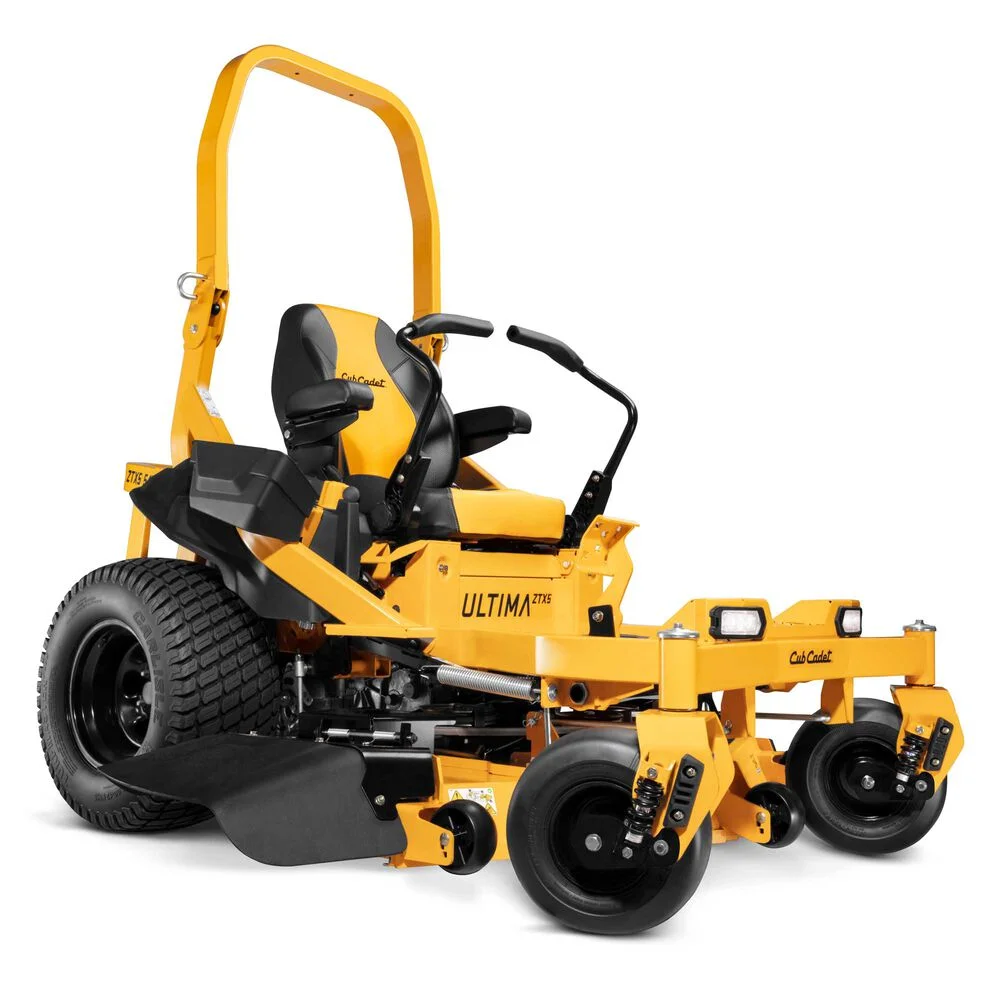

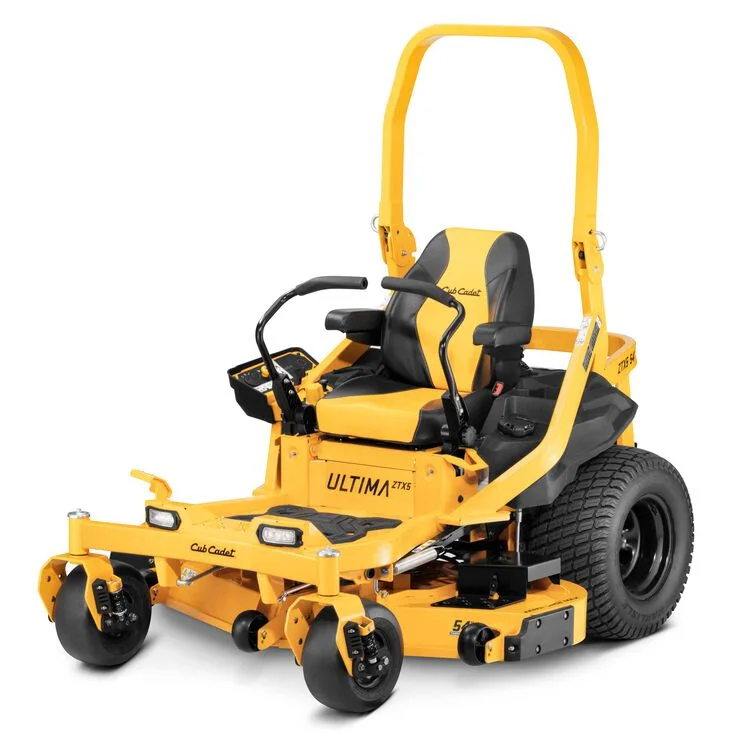

Cub Cadet Ultima Series ZTX5 54 54-in. 24 HP

The Cub Cadet® Ultima Series ZTX5 54 54-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.

• Independent suspension caster wheels that deliver a smooth ride with less vibration.
• High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimised for comfort providing you the confidence to maximise your speed and reduce operator fatigue
• Zero-Turn Mower

ZTX5 54 Features:

• Front Suspension
• Rugged Frame
• Hydro_Gear™ ZT3200 Transmission
• Enhanced Traction
• Quick_Adjust Lap Bars
• High Back Seat
• Dual LED Headlights
• Reduced Vibration
• Easy Maintenance

Specs & Maintenance

Engine

• Engine Brand: Kawasaki®
• Engine Model: FS Series
• Engine Model Number: 730V
• Engine Displacement: 726cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US ( 2 L)
• Lubrication: Fully pressurised
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3200
• Forward Speed: 8.5 MPH / 13.7 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 54 in
• Deck Wash:No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1″ – 4.75″
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

Chassis

• Frame: 1.5″ x 3″ tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 24″ high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels

• Rear Tires: 23″x 12″-12″
• Front Tires: 13″x 6.5″-6″
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTX

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 47RKAAA7A10

Warranty

• Residential Warranty: 4-year 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year 800 hours
