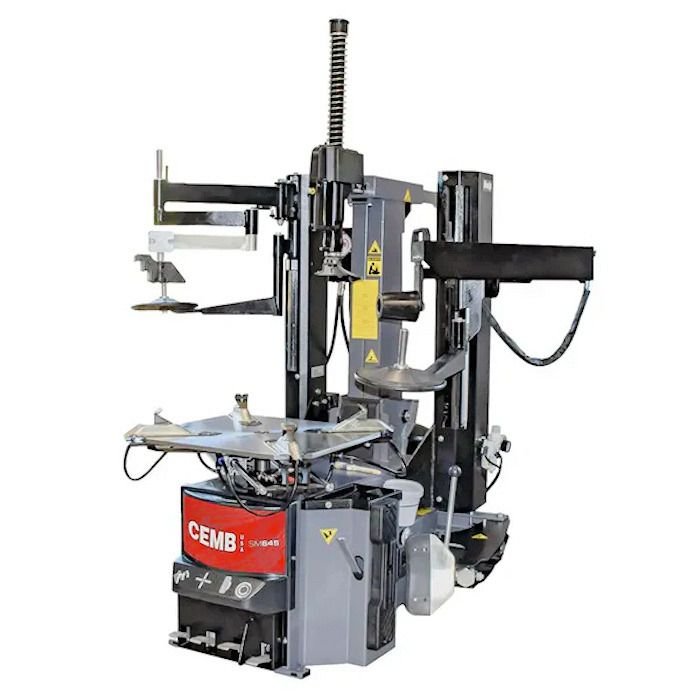

The CEMB SM645HPA High Performance Tilt Back Tire Changer is a professional quality automatic locking tilt-column tire changer features HPA high performance press arm highly recommended to easily aid in the servicing of high performance and run flat tires with stiff sidewalls and difficult wheels with deep drop centers. Features automatic tilt-back, HPA side presser, table top clamping, two stage inflation, high torque air motor, bead breaker shovel, and dual table clamping cylinders with Space-Save under table adjusting clamping range.
- Traditional Two Arm Set Up: Press Arm And Help Arm
- Self-Centering Plate With 12-26″ Locking Capacity
- Tilt-Back Mount-Demount Arm Automatically Rotates And Lowers Into Position
- Utilizes Pneumatic Control And High Quality Locking System With Roller Guides
- Bead Loosening System: Adjustable To The Correct Angle To Fit Diameter And Width Improving Control Accuracy
Automatic Tilt-Back
Mount-demount arm automatically rotates and lowers into position. Utilizes pneumatic control and high quality locking system with roller guides.
HP2 Side Presser
Allows for easy operation on RUN-FLAT and UHP tires up to 26″.
Table Top Clamping
Table Top Clamping is self-centering with rim diameter index guides to aid in simple external rim clamping avoiding tire and rim scratches.
Two Stage Inflation
Utilizes bead sealing jets optimized by placement at the clamping jaws. Includes safety limiter.
High Torque Motor
Heavy-Duty air motor, handles the difficult sidewall tires and deep drop center rims.
Bead Breaker Shovel
Foot operated side mounted bead breaker shovel combines speed with power for everyday wheel applications to save time.
Features and Specs
Features
- Automatic Tilt-Back
- Table Top Clamping
- High Torque Air Motor
- HP2 Side Presser
- Two Stage Inflation
- Bead Breaker Shovel
- Final Assembly And Tested In The USA

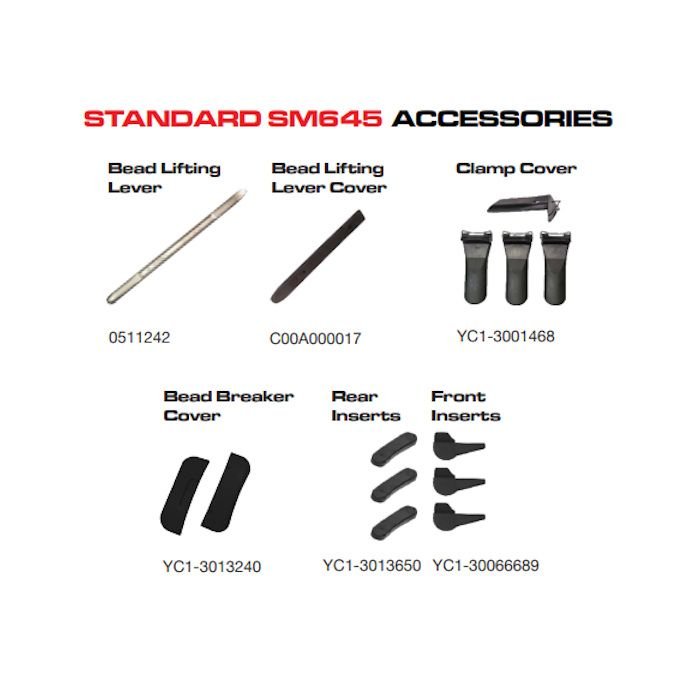

Standard Accessories
- #511242 Bead Lifting Lever
- #C00A00017 Bead Lifting Lever Cover
- #YC130001468 Clamp Covers (4)
- #YC13013240 Bead Breaker Cover (2)
- #YC13013650 Rear Inserts (3)
- #YC13006689 Front Inserts (3)
Specifications
- Power Supply: 110V, 1ph, 50/60 Hz
- Air Pressure: 115-145 psi (8-10 bar)
- Rim Diameter (Ext.): 12″ – 26″
- Tire Diameter: 44″ (1,118 mm)
- Max. Wheel Width: 13″ (380 mm)
- Turn Table Speed: 8-15 rpm
- Shipping Weight: 1,050 lbs. (476 Kg)
- Warranty: (2) Years on Parts, (1) Year Labor
CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter “BL”) warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.
If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL’s option. BL must receive damaged part for full credit. Such repair or replacement shall be BL’s sole obligation and the buyer’s exclusive remedy under this warranty.
This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL’s liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller’s liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
