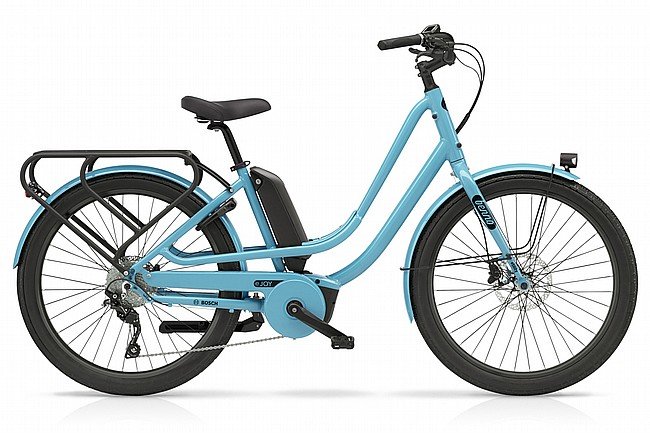

Benno 2023 eJoy 5i Evo1 Performance Class 1 E-Bike

The Stepthrough That Raises The Bar

The Benno eJoy 5i Performance, with Etility® Design, is so much more than cute. This is a seriously smart, seriously capable bike built around the industry leading Bosch mid-drive electric motor.

The sturdy rack and available front trays and storage bags let you carry 2x more weight than the typical bike. The comfortable, upright riding position gives you confidence and control, even while carrying cargo. And for that extra precious cargo, the eJoy, is 100% compatible with most premium child seats.

Features:

• Easy On design
• Oversized rear rack expands your cargo options
• 5 Riding Modes & Walk Assist
• One Size – Fits Riders from 5’0″ to 6’0″ (152-183cm)
• Max Gross Weight: 400lb/180kg
• Rear: 85lb/40kg; Front: 35lb/15kg; Rider: 260lb/120kg
• Bike: 55lb/25kg

Build:

Motor:

• • Motor: Bosch Performance 250W, 65Nm, GEN 3
  • Assisted Speed: 20mph
  • Single Battery Range: 25-75mi (40-120km)
  • Battery: Bosch Powerpack 400Wh Lithium-Ion
  • Charger: Bosch Compact 2A
  • Charge Time: 6.5h
  • Controller: Bosch Purion Display
  • Headlight: Herrmans MR 8 E
  • Tail Light: Herrmans H-TRACE E

Frame:

• • Frame: 6061 Aluminum Alloy with Front Tray Mounts
  • Fork: Oversized CRMO Steel
  • Seat Collar: Aluminum, Q/R, 31.8mm

Wheels:

• • Front: Shimano HBM4050

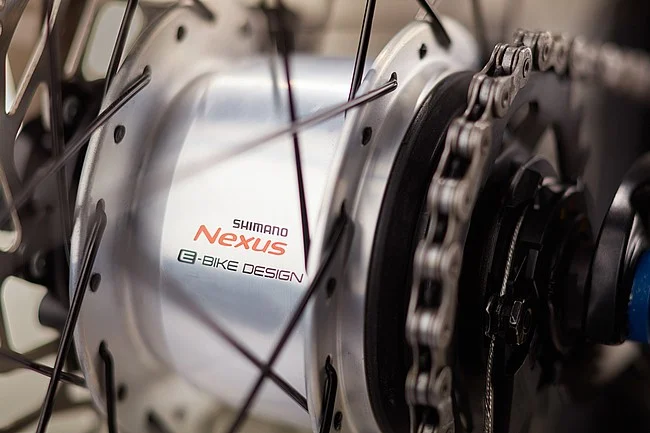

  • Rear: Shimano Nexus 5-Speed
  • Rims: Aluminum, Double Wall, 36H
  • Spokes: Stainless 14G
  • Tires: Balloon Tires 26″ x 2.35″, Puncture Resistant, 60 TPI

Drivetrain:

• • Shifters: Shimano Nexus Revo 5-Speed
  • Derailleur: Shimano Deore 10-Speed
  • Chainring: 38t

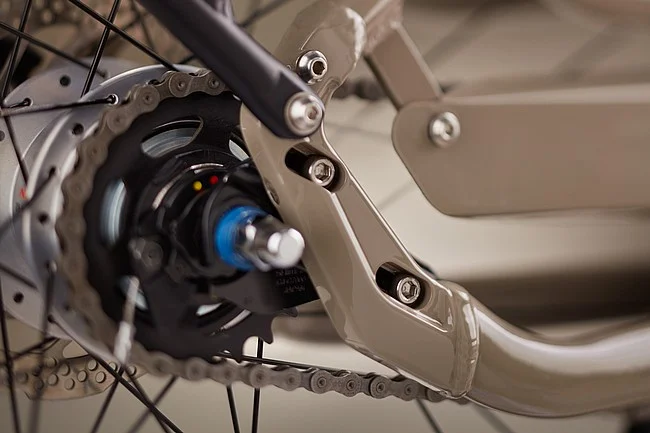

  • Cassette: Shimano Nexus, Single Sprocket 24t
  • Chain: Taya e-OCTO-5S, 110 Links

Brakes:

• • Front: Shimano Hydraulic Disk, Rotor 180mm
  • Rear: Shimano Hydraulic Disk, Rotor 160mm
  • Levers: Shimano

Components:

• • Chainguard: Semi Enclosed, Aluminum
  • Pedals: One Piece Aluminum, Non Slip TPE Threads
  • Saddle: Benno Low Profile Comfort with Elastomer Springs
  • Seatpost: Aluminum, Diameter 27.2mm, Length 350mm
  • Handlebar: Aluminum, Width 640mm, Rise 70mm
  • Grips: Benno Ergo Profile, Lock-On
  • Stem: Aluminum, Threadless, 60mm
  • Headset: FSA Integrated
  • Fenders: Extruded aluminum

Etility Features:

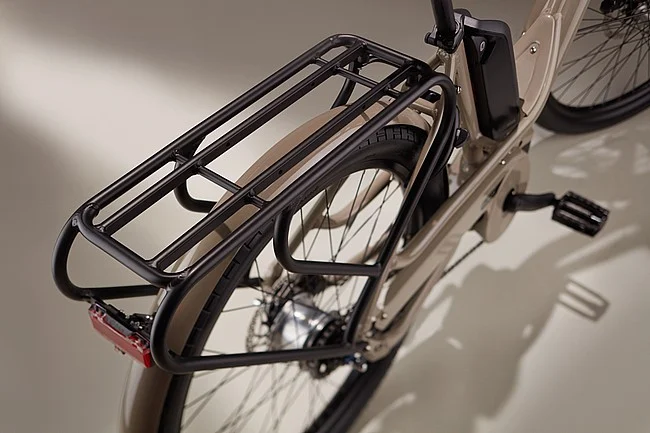

• Rack: eJoy Rear Rack, 16mm Tubing, Aluminum, Max. Load 85lbs/40kg
• Front Tray: Compatible (Not Included)
