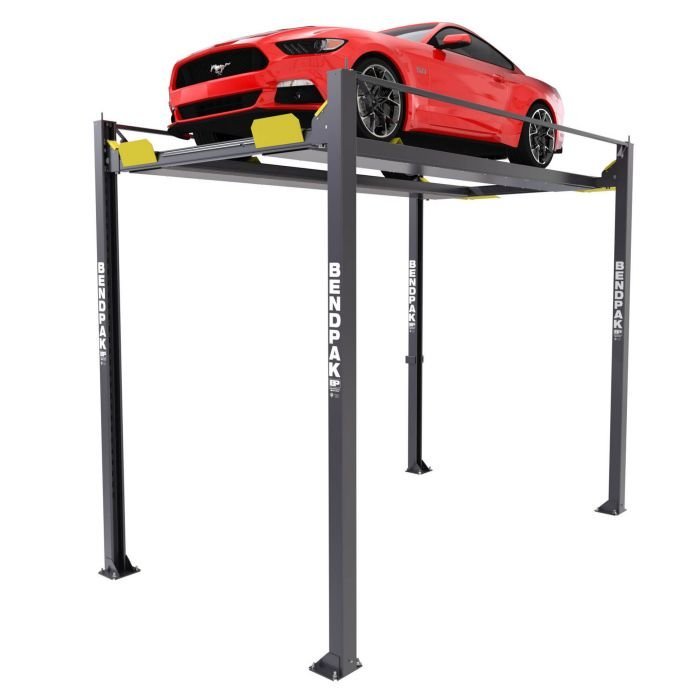

BendPak HD-7PXW Four Post Lift Short Runway

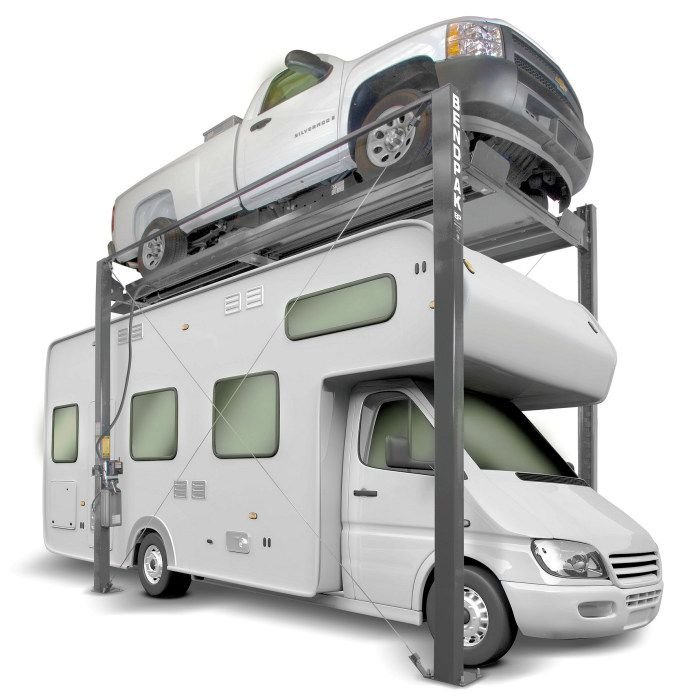

The HD-7PXW is literal giant. This 4 post lift will effortlessly lift up to 7,000 lbs. over 12′ into the air! Perfect for stacking taller vehicles. The HD-7PXW is the wider model of this super tall lift.

Features

• 7,000-lb. maximum lifting capacity
• Super-tall lift
• Runways include outside guide rails

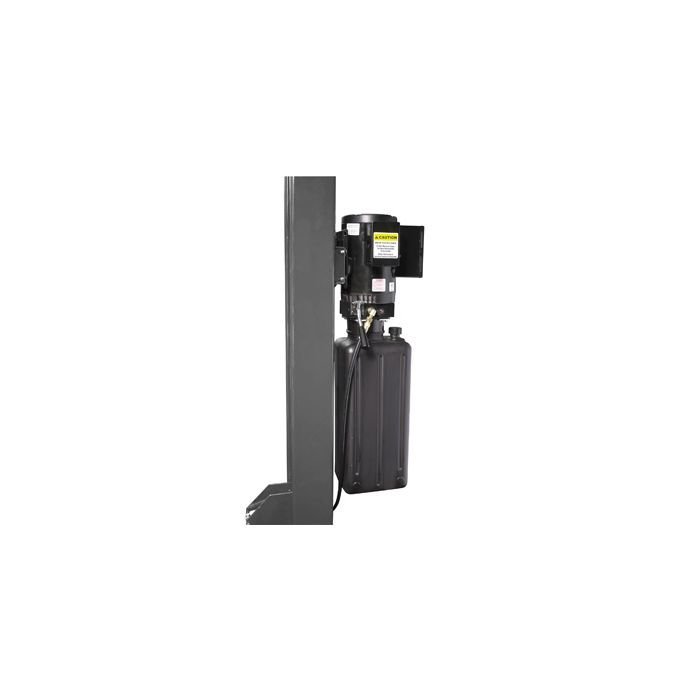

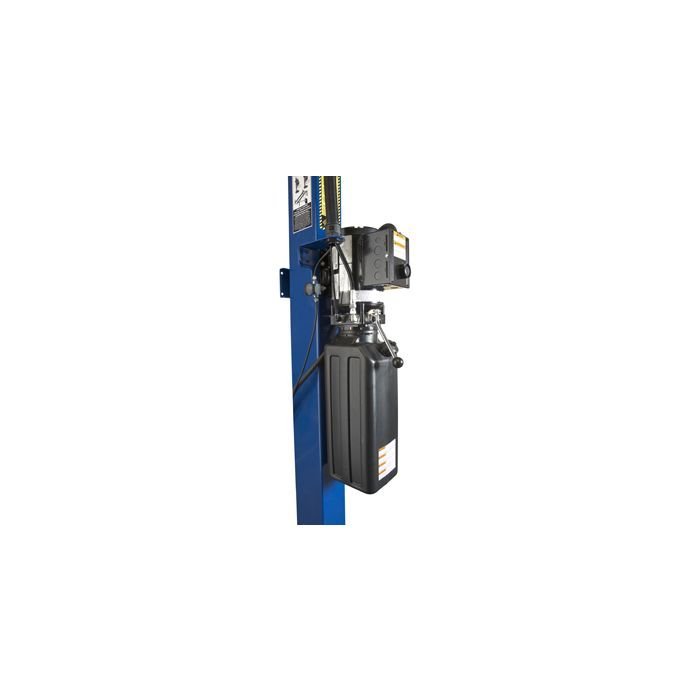

• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column

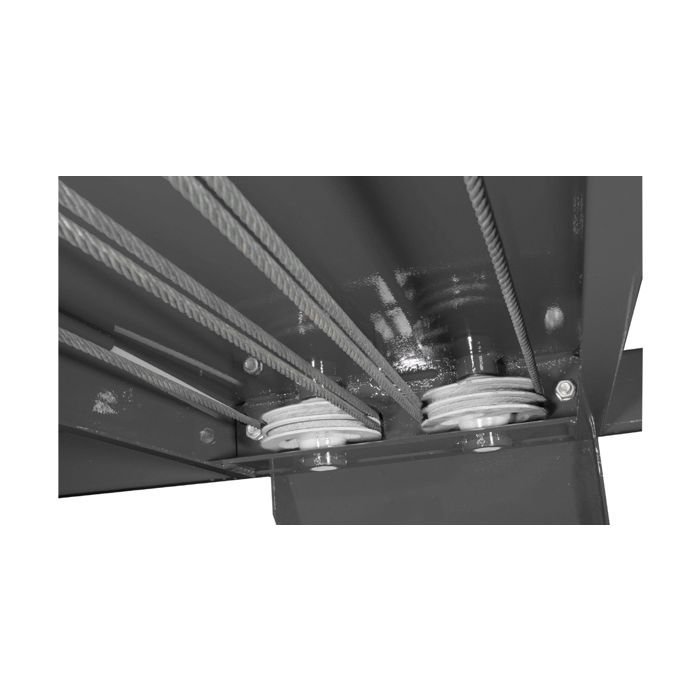

• Oversized self-lubricating cable rollers
• High-speed lifting
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1-1/4″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders

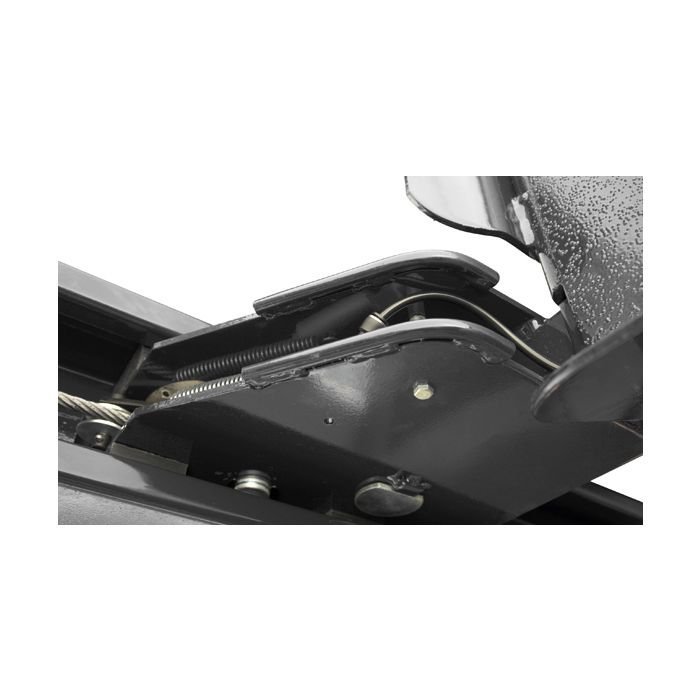

• Push-button pneumatic safety release

Specifications

MODEL HD-7PXW (Rev. M)
Configuration Wide / Super-Tall Rise
Lifting Capacity 7,000 Lbs. / 3175 Kg.
Max Capacity / Front Axle 3,500 Lbs. / 1588 Kg.
Max Capacity / Rear Axle 3,500 Lbs. / 1588 Kg.
A – Overall Width 110-1/4″ / 2800 mm.
B – Outside Length 198” / 5029 mm.
C – Overall Length 213” / 5410 mm.
D – Height of Columns 158” / 4011 mm.
E – Min. Runway Height 4-1/2” / 114 mm.
F – Max. Rise 140” / 3556 mm.
G – Max. Lifting Height 145” / 3685 mm.
H – Width Between Columns 100‐1/4” / 2,555 mm.
I – Runway Width 19” / 483 mm.
J – Width Between Runways (*) NARROW 37-1/2″ / 952 mm.
J – Width Between Runways (*) WIDE 44-3/8″ / 1127 mm.
K – Runway Centerline (*) NARROW 56-1/2″ / 1435 mm.
K – Runway Centerline (*) WIDE 63-3/8″ / 1610 mm.
L – Outside Edge of Runways (*) NARROW 75-1/2″ / 1918 mm.
L – Outside Edge of Runways (*) WIDE 82-3/8″ / 2092 mm.
M – Drive-Thru-Clearance 86-1/2″ / 2197 mm.
N – Length of Runways 188″ / 4775 mm.
Min. Wheelbase @ Rated Capacity 135″ / 3429 mm.
Min. Wheelbase @ 75% Capacity 115″ / 2921 mm.
Min. Wheelbase @ 50% Capacity 95″ / 2413 mm.
Min. Wheelbase @ 25% Capacity 80″ / 2032 mm.
Locking Positions 30
Lock Spacing Every 4″ / 102 mm.
Lifting Time 60 Seconds
Standard Motor (**) 208-230 VAC / 50-60 Hz. / 1Ph
