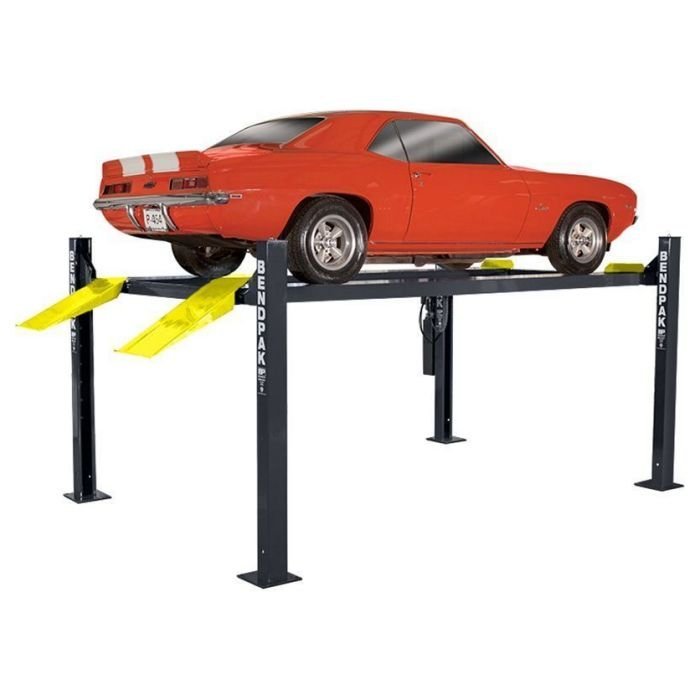

The HD-9ST is a rugged, standard-height, space-saver solution with a 9,000-lb. lifting capacity. Perfect for vehicle storage and service – at the shop or in the garage. Whether you’re a service professional or a DIY’er, BendPak’s got the right lift for you. This model is available with optional casters, dip-trays, jack platform and more.
Features
- 9,000-lbs. maximum lifting capacity
- Two different ramp lengths to choose from
- Narrow width for space efficiency
- Freestanding design

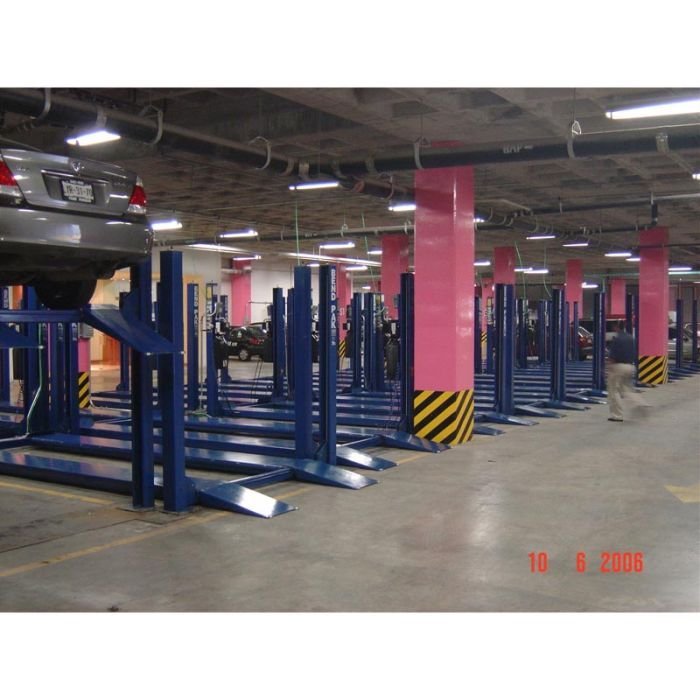

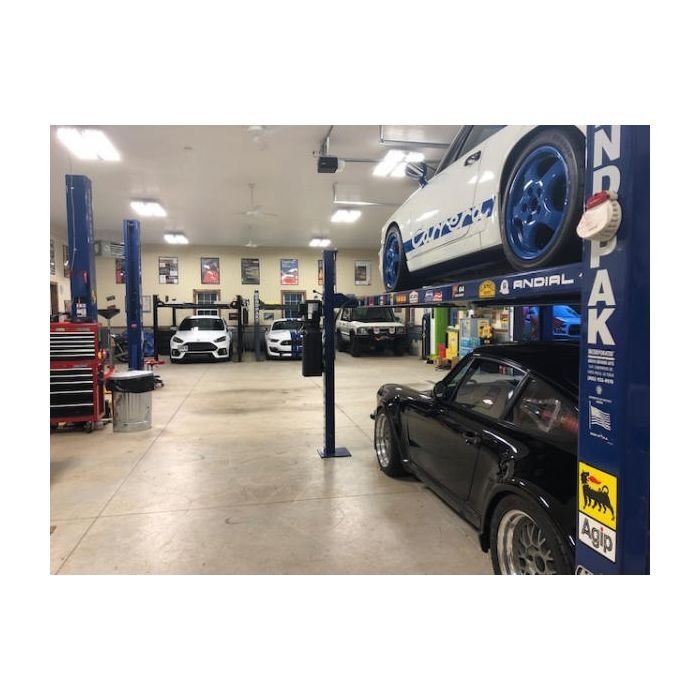

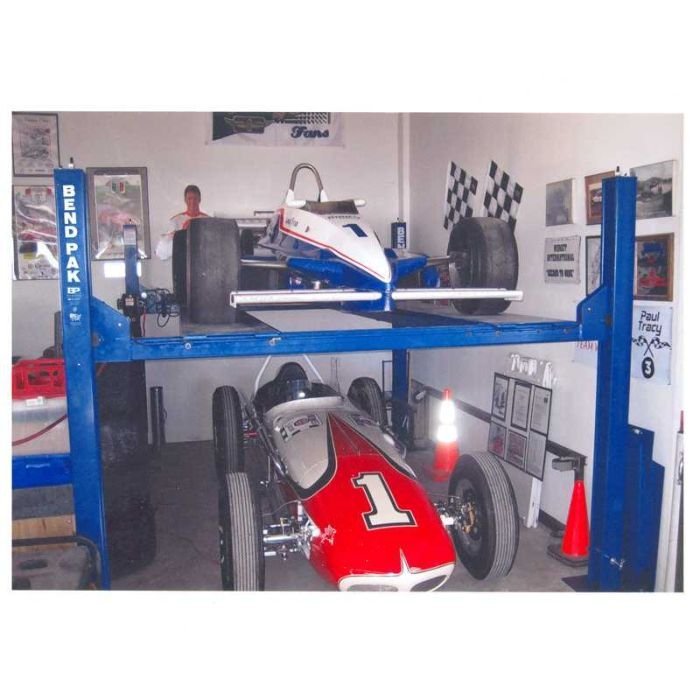

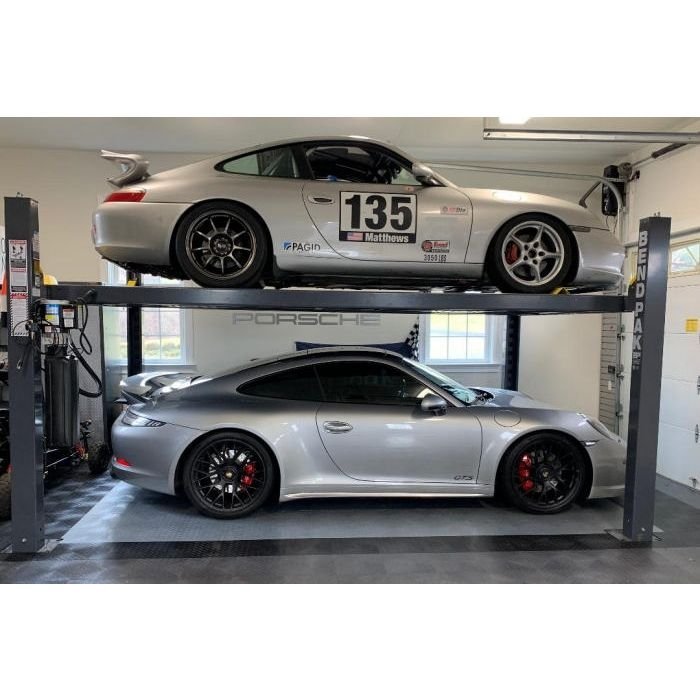

- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column

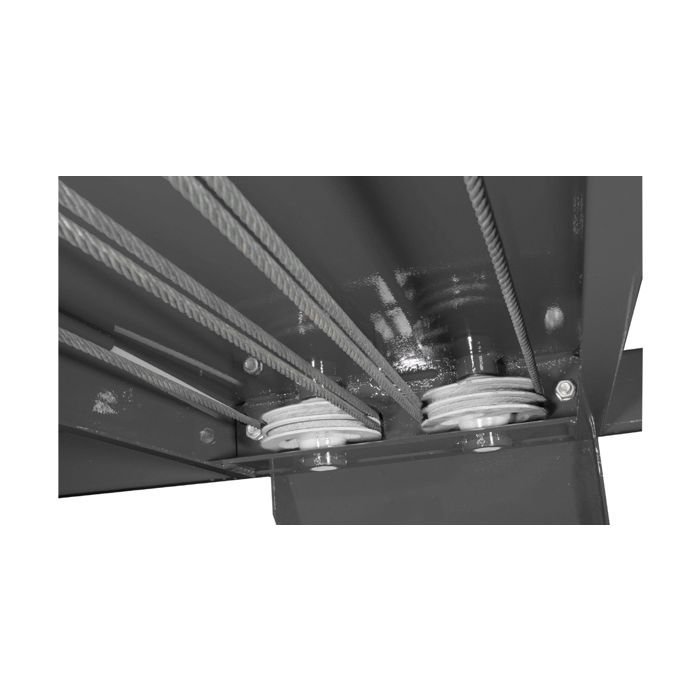

- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8″ aircraft cable
- Rugged 1-1/4″ roller axles

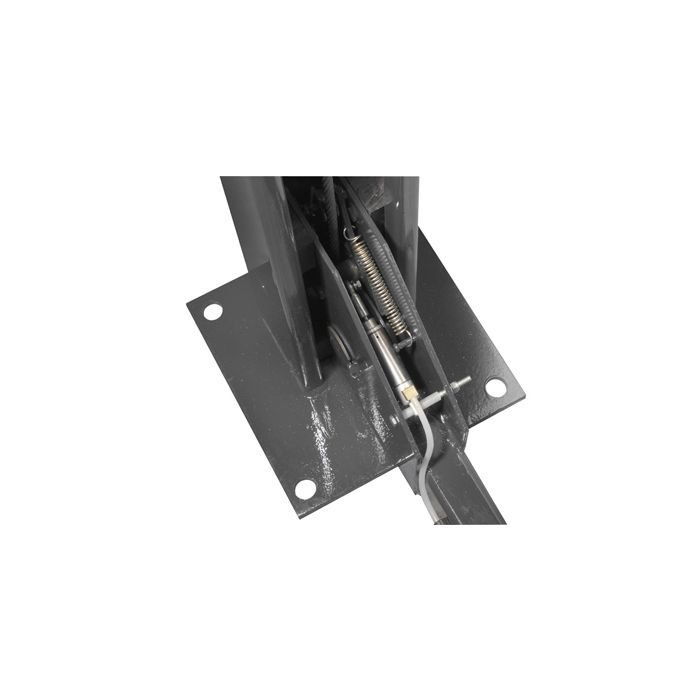

- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release

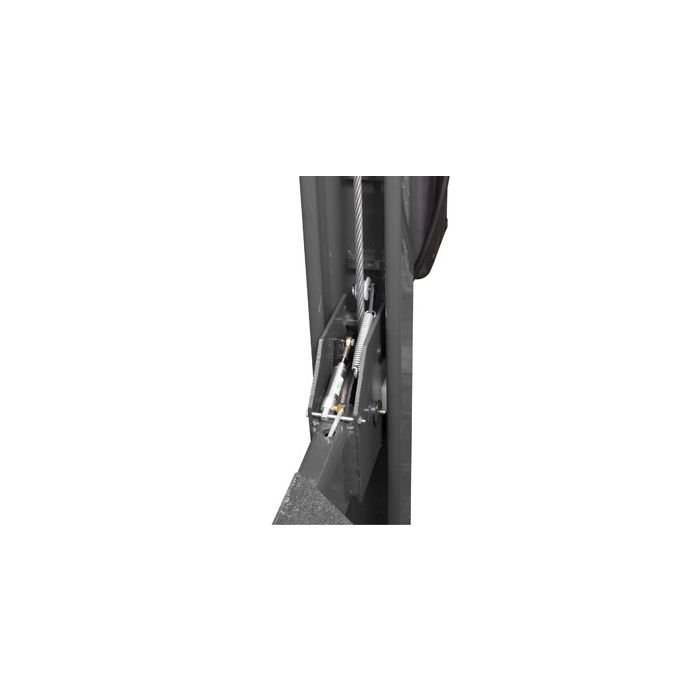

- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable steel approach ramps included
- Extra long approach ramps for low-ground clearance vehicles optional
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity

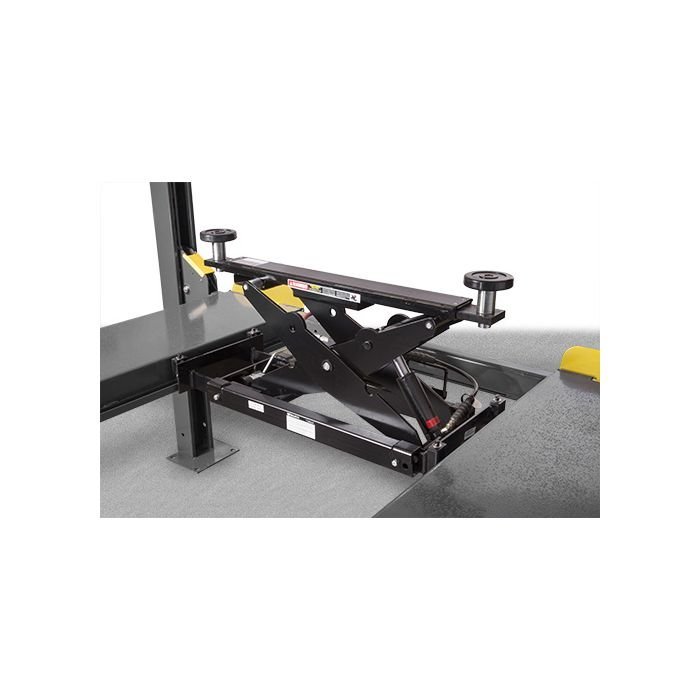

- Optional 4,500-lbs. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specifications
- Lifting capacity*:9,000 lbs. / 4,082 kg
- *Max capacity / front axle: 4,500 lbs. / 2,041 kg
- *Max capacity / rear axle: 4,500 lbs. / 2,041 kg
- Overall width: 99-3/4″ / 2,534 mm
- Outside length: 174″ / 4,420 mm
- Overall length: 200″ / 5,080 mm
- Height of columns: 88″ / 2,235 mm
- Runway min height: 4-1/2″ / 114 mm
- Max rise: 70″ / 1,778 mm
- Max lifting height: 74-1/2″ / 1,892 mm
- Width between posts: 89-3/4″ / 2,280 mm
- Runway width: 19″ / 483 mm
- Width between runways: 37-1/2″ / 952 mm
- Runway center line: 56-1/2″ / 1,435 mm
- Outside edge of runways: 75-1/2″ / 1,918 mm
- Length of runways: 164″ / 4166 mm
- Min. wheelbase @ rated capacity: 115″ / 2,921 mm
- Min. wheelbase @ 75% capacity: 100″ / 2,540
- Min. wheelbase @ 50% capacity: 85″ / 2,159 mm
- Min. wheelbase @ 25% capacity: 70″ / 1,778 mm
- Locking positions: 12
- Lock spacing: every 4″ / 102 mm
- Lifting time: 45 sec
- Motor: 220 VAC / 60 Hz / 1 Ph
- Shipping Weight: 1,872 lbs. / 851 kg
- Shipping Dimensions: 180″ x 22″ x 40″ / 4,572 mm x 559 mm x 1,016 mm
