Description

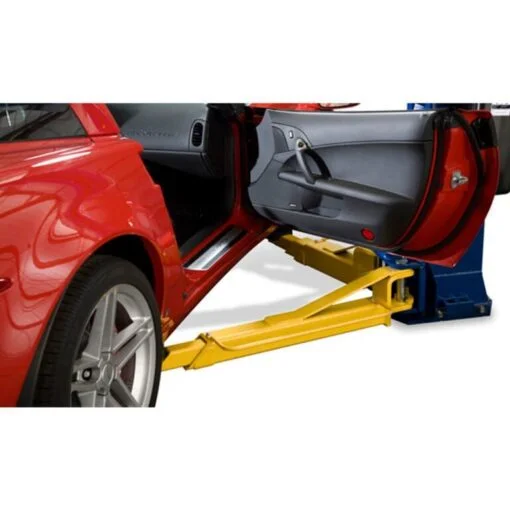

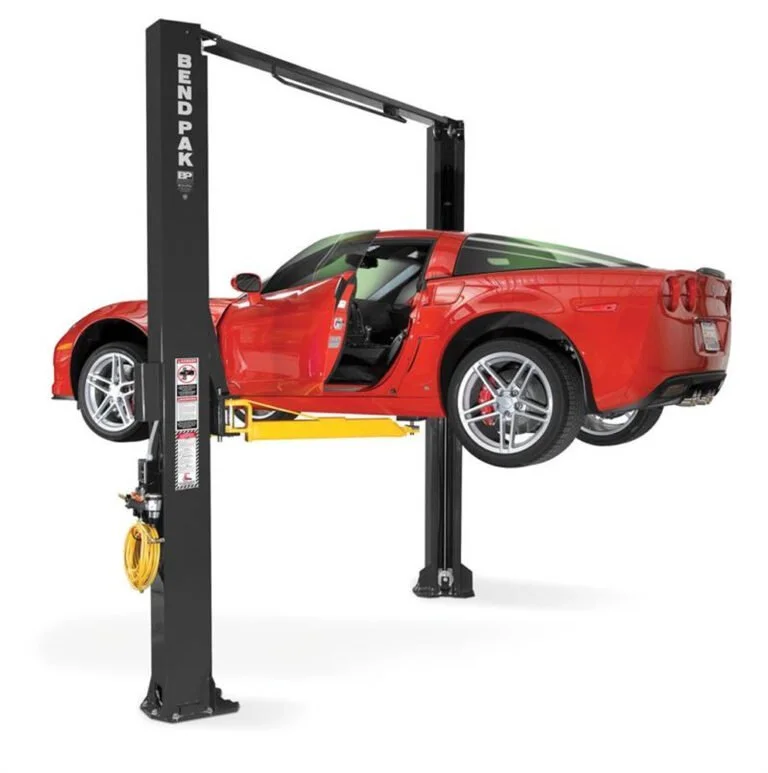

BendPak XPR-10AS-LP asymmetric two-post lift features our exclusive Low-Pro™ arms that accommodate lowered sports cars and those vehicles with exclusive lift points located on the extreme outer edges of the chassis. This super-industrial-strength piece of equipment has got it all: cutting-edge technology, top of the line materials, design that’s ahead of its time and a 10,000 pound lifting capacity. Fits in shops with ceilings higher than 12′, and it won’t crowd your floor while you work beneath a vehicle.

  • Lift arms shown with optional foot guards
  • 10,000-lb lifting capacity
  • Expandable top beam accommodates wide or narrow drive-thru configuration
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Exclusive Tru-Metric arm design for more versatile arm positioning
  • 30° rotated single-piece columns
  • Single-point safety release
  • Dual hydraulic direct-drive cylinders
  • Oversized 53″ tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17″ x 19″ A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3″
  • Automatic arm restraints
  • Heavy-duty 1/2″ aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4-piece 63mm stackable adapter set comes standard
  • Versatile drop-in contact pads with stackable adapters
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011



MODEL XPR-10​AS-LP
Lifting Capacity* 10,000 Lbs. / 4,536 kg.
*Max Capacity / Front Axle 5,000 Lbs. / 2,268 kg.
*Max Capacity / Rear Axle 5,000 Lbs. / 2,268 kg.
A – Height Overall: 145″ / 3,683 mm*
B – Width Overall: (NARROW) 137″ / 3,480 mm .
B – Width Overall: (WIDE) 145″ / 3,683 mm.
C – Width Outside of Columns: (NARROW) 133″ / 3,378 mm.
C – Width Outside of Columns: (WIDE) 141″ / 3,581 mm.
D – Floor To Overhead Switch: 141″ / 3,581 mm.*
E – Inside Columns: (NARROW) 104″ / 2,642 mm.
E – Inside Columns: (WIDE) 112″ / 2,845 mm.
F – Reach (Front Arm Min.): 23-1/2″ / 597 mm.
G – Reach (Front Arm Max.): 38-1/2″ / 978 mm.
H – Reach (Rear Arm Min.): 34-1/2″ / 876 mm.
I – Reach (Rear Arm Max.): 54-1/2″ / 1,384 mm.
J – Min. Pad Height: 4.25″ – 6-3/4” / 108 mm. – 171 mm.
K – Rise: 69″ / 1,753 mm.
L – Max Lift Height (Pad Only): 73″ – 75″ / 1,854 – 1,905 mm.
M – Max Lift Height (3″ Adapter): 75.5″ – 77.5″ / 1,917 mm. – 1,968 mm.
N – Drive-Thru Clearance: (NARROW) 94″ / 2388 mm.
N – Drive-Thru Clearance: (WIDE) 102″ / 2591 mm.
Screw Pad Adjustment: 2″ / 51 mm.
Motor (**) 220 VAC / 60 Hz. 1Ph.
Time of full Rise: 45 Seconds
Max Load Per Arm: 2,500 Lbs. / 1134 Kg.
