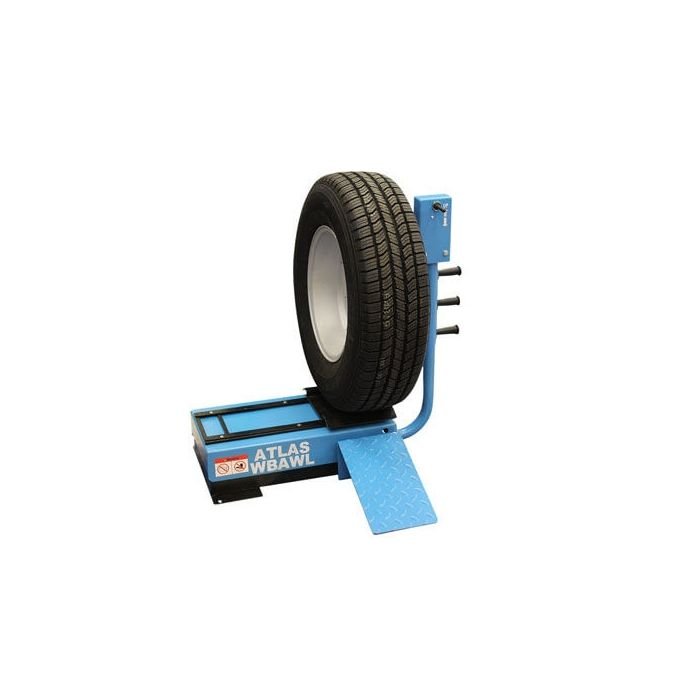

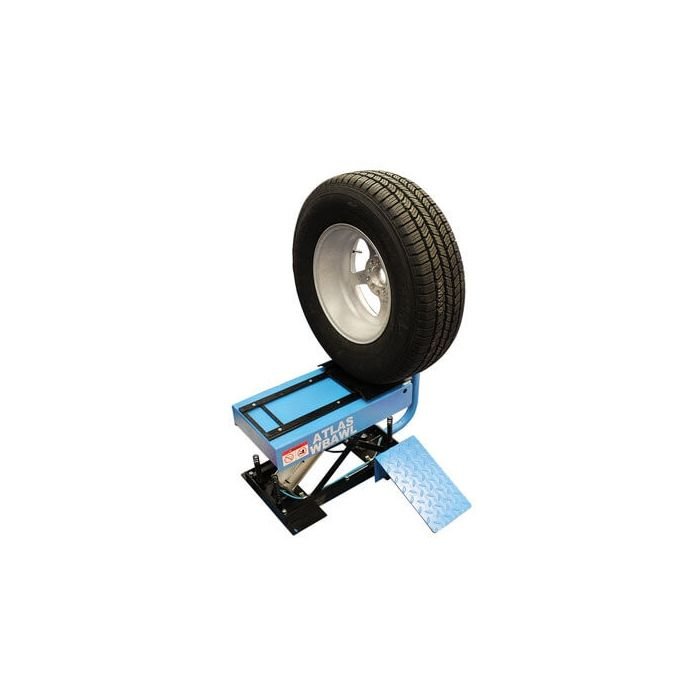

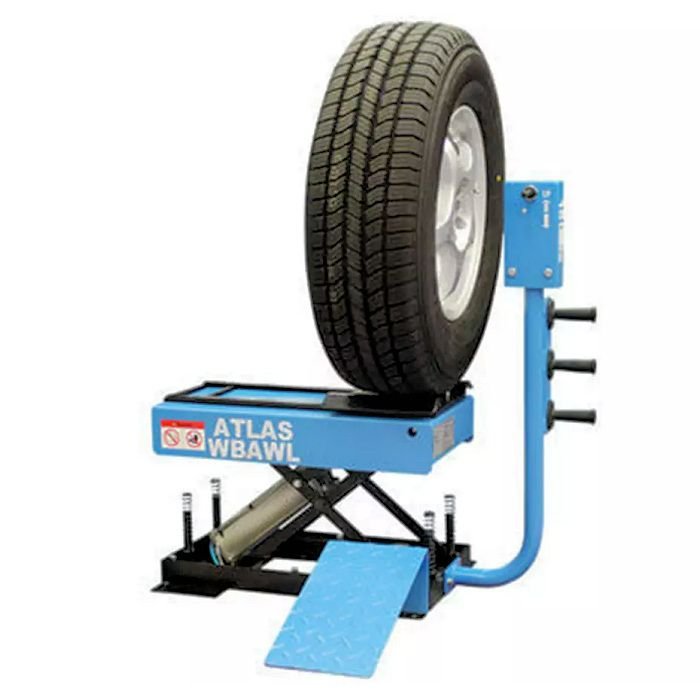

Atlas WBAWL Pneumatic Stationary Wheel Lift

The Atlas WBAWL Stationary Pneumatic Wheel Lift is made with pneumatic technology which is designed to elevate and support different tire and wheel combinations up to a maximum weight of 150 lbs. Its innovative and sleek structure makes it to suitable with almost every wheel balancers available in the market.

The operator rolls the tire onto the lowered platform slide, moves the conveniently located toggle switch and raises the wheel/tire to the correct mounting height. The platform slide allows the wheel to be moved onto the balancer shaft and then the mounting cones and locking nut are properly installed.

Many of the heavy custom wheels currently on the market need the wheel to be mounted to the balancer through with the use of lug bolt pattern. With this type of setup, it is nearly impossible for a single person to carry the heavy wheel while trying to position the universal lug bolt adapter and avoiding the possibility of causing damage to the machine’s balancer shaft and even on its rim. With the Atlas WBAWL the installation on that adapter is made much easier.

The Atlas WBAWL has several great features including three non-mar cone hangers which store the cones or quick release nut nearby. The WBAWL has four base mounted detent springs that ensures a controlled descent leveling speed. Finally, the base mounted air regulator helps to maintain the correct amount of pressure onto the pneumatic cylinder.
