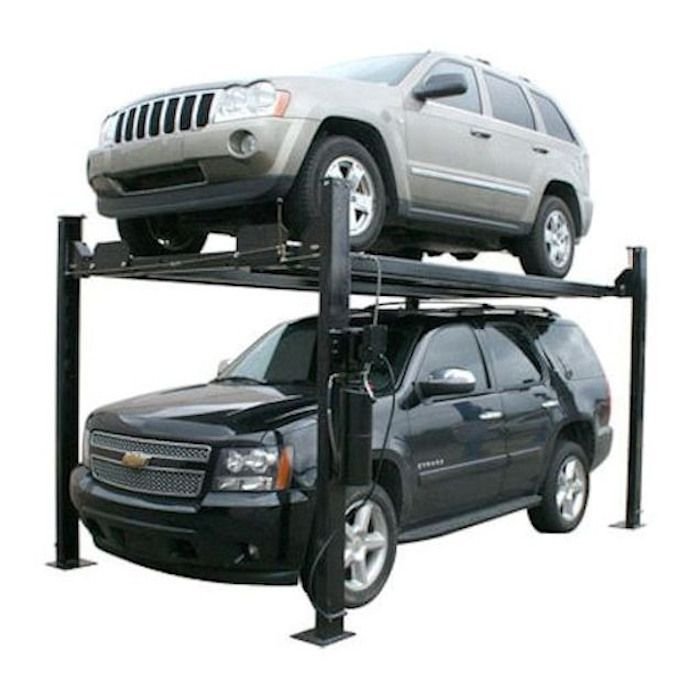

The Atlas Garage Pro 8000EXT is designed to go higher to accommodate parking for taller vehicles, such as SUVs and pickup trucks, under the elevated ramp. The Atlas Garage Pro 8000EXT incorporates many of the great features of the Atlas Garage Pro 8000 and the Atlas Garage Pro 9000. The Atlas brand offers a competitive priced above ground auto lift that offers more features and benefits than the ever increasing number of “economy” auto lifts sold by no-name Internet marketers. Includes a Caster Kit with Polyurethane Wheels, Steel Approach Ramps, Heavy Duty Steel Jack Tray, Plastic Drip Trays, Rubber Wheel Chocks, and Steel Wheel Stops.
Features and Specs
Garage Pro 8000EXT Four Post Lift Features
- 8,000 lbs. Capacity
- Powder Coat Finish

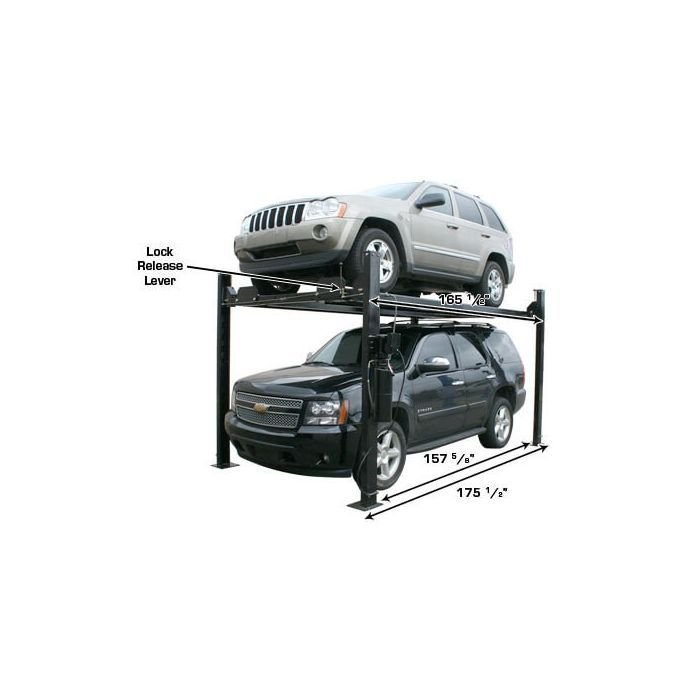

- Single-Point Lock Release
- Lock Ladder Design
- Diamond Plated Steel Runways

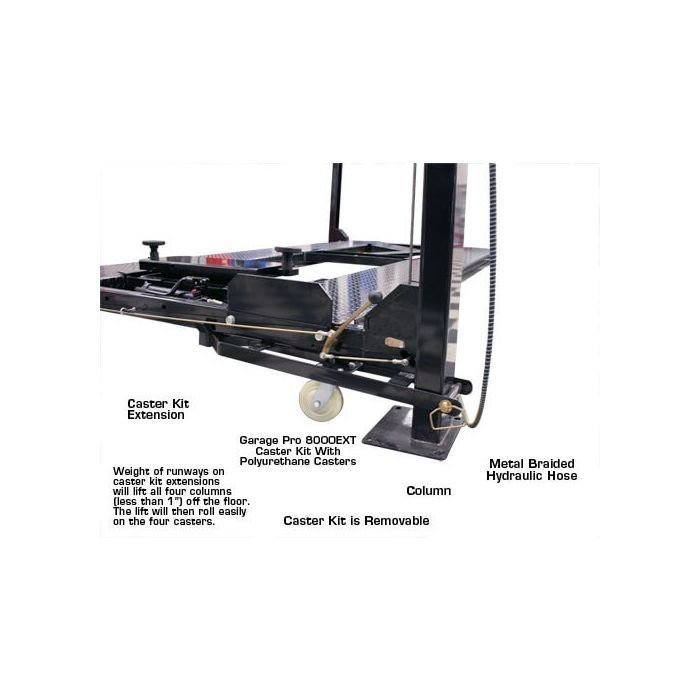

- Caster Kit With Polyurethane Wheels Included
- (2) Steel Approach Ramps Included
- (1) Heavy Duty Steel Jack Tray Included
- (4) Plastic Drip Trays Included
- (4) Wheel Stops Included
- (2) Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
Garage Pro 8000EXT Four Post Lift Specifications
- Capacity: 8,000 lbs.
- Lifting Height: 84-1/4″ (7′ 1/4″)
- Overall Width (Without Motor): 104-3/8″ (8′ 8-3/8″)
- Overall Width (With Motor): 114″ (9′ 6″)
- Length Between Columns: 157-1/2″ (13′ 1-1/2 “)

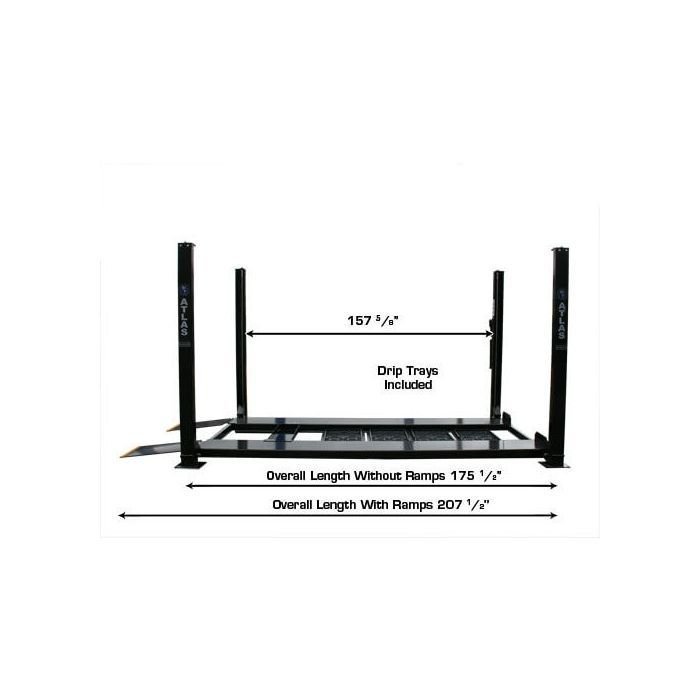

- Overall Length with Approach Ramps: 207-1/2″ (17′ 3-1/2 “)
- Overall Length without Approach Ramps: 175-1/2″ (14′ 7-1/2″)
- Approach Ramps: 36-3/8″ (3′ 3/8″)
- Total Runway Width: 21-1/4″ (1′ 9-1/4 “)
- Runway Length: 165-1/2″ (13′ 9-1/2 “)
- Runway Thickness: 4-1/2″
- Width Between Runways: 37-3/8″
- Width Between Runway Rails: 31-3/4″
- Outside Runway to Outside Runway: 74-3/4″ (6′ 2-1/4″)

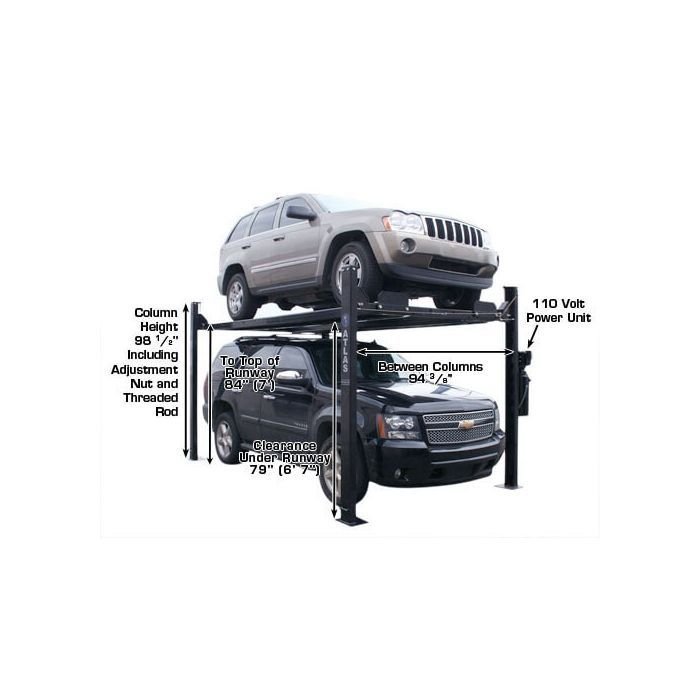

- Clearance Under Runways: 79″ (6′ 7″)
- Size of Column: 6-1/4″ x 3-3/8″
- Clearance Between Columns: 94-3/8″ (7′ 10-3/8″)
- Base of Column: 9-5/8″ x 11-1/2″
- Height of Columns: 98-1/2″ (8′ 2-1/2″)
- Maximum Wheel Base: 153-1/2″ (12′ 9-1/2″)
- Drive Thru (Outside of tire to outside of tire): 80-1/2 ” (6′ 8-1/2 “)
- Cable Diameter: .350″
- Gauge Of Steel: 6 Gauge (.1875″/ 3/16″ / 4.75mm)
- Motor: 110 Volt
- Electrical Requirement: 30 Amp Breaker is Required
- Oil Requirement: 3-5 Gallons AW32/AW46
- Shipping Dimensions: 22″ W x 28″ H x 167″ L (1′ 10″ W x 2′ 4″ H x 13′ 11″ L)
- Shipping Weight: 1,739 lb.
- Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor

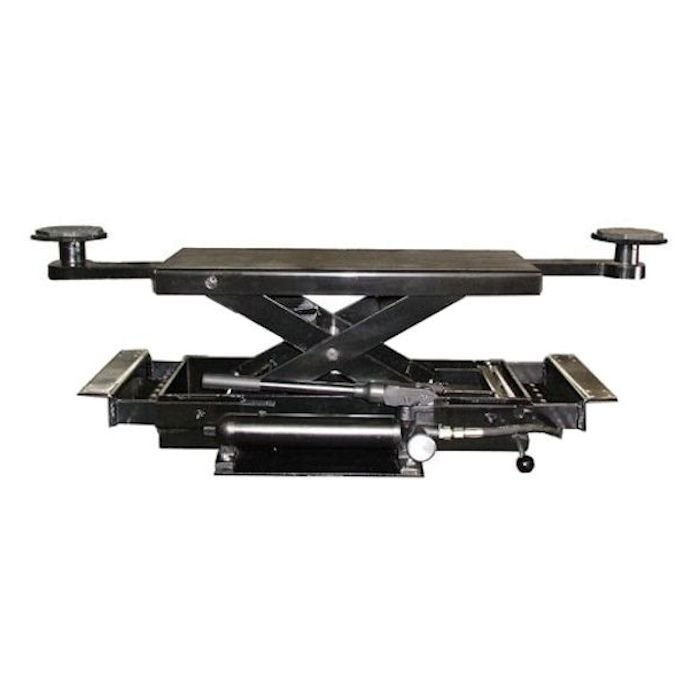

RJ35 Sliding Jack Features
- 3,500 lbs. Capacity
- Manually Operated
- Scissor Mechanism Allows For Level Lifting
- Compact Size With A Low Profile
- Adjustable Width Fits Most Four Post Lifts
- Safety Lock Positions
- Adapters Included
- Powder Coated Finish
- Commercial Grade
- Adapter Storage
RJ35 Sliding Jack Specifications
- Capacity: 3,500 lbs.
- Minimum Width: 29-1/2″
- Minimum Width with Arms In: 39-1/2″
- Maximum Width with Arms Out: 64-3/4″
- Minimum Height with Lift Pad: 3-1/2″
- Lifting Pad: 1-3/8″
- Short Adapter: 1-1/4″
- Tall Adapter: 5″
- Raised Height without Adapter: 11″
- Raised Height with Small Adapter: 12-1/4″
- Raised Height with Large Adapter: 16″
- Raised Height with Small and Large Adapter: 17-1/4″
- Shipping Dimensions: 10″ x 22-5/8″ x 37-3/8″
- Shipping Weight: 350 lbs.
