Atlas AEZWL Pneumatic Offset Portable Wheel Lift
180 lbs. Capacity with 12″ Heavy-Duty Roller Arms

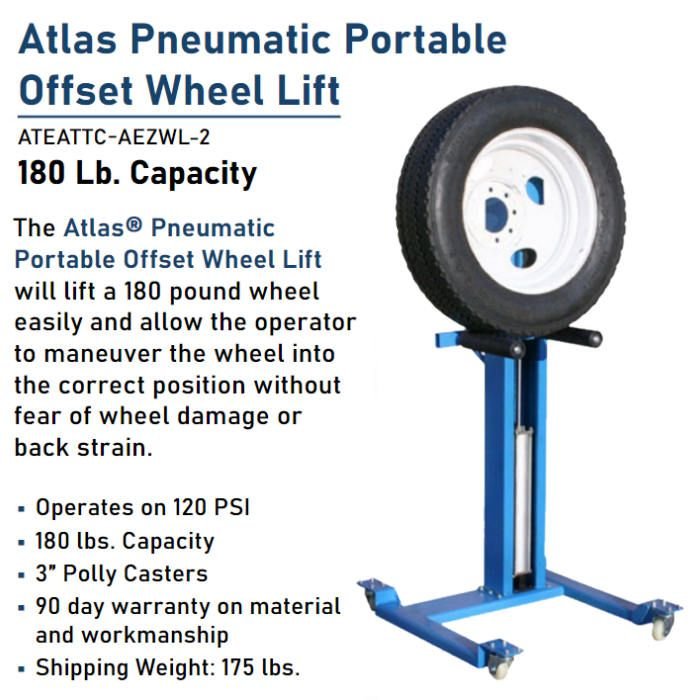

The Atlas AEZWL-2 Pneumatic Offset Portable Wheel Lift is the perfect solution to prevent back injuries when lifting large wheel assemblies onto the shaft of a wheel balancer, onto a tire changer turntable, or even removing or installing tires on a car raised on a scissor or two post lift.
Today’s wheels and tires are getting bigger and heavier. Many wheels are expensive and can be easily scratched or damaged. Atlas air operated wheel lifts will lift up to a 180 lbs. wheel easily and allow the operator to maneuver the wheel into the correct position without fear of wheel damage or back strain. The AEZWL-2’s smooth air operation requires only 116-145 PSI air pressure and the four swivel casters make it easy to move and position where needed.
Features and Specs
Features
- Pneumatic Centered Portable Wheel Lift
- 180 lbs. Capacity
- Offset Column Design
- 12″ Heavy-Duty Roller Arms
- 3″ Poly Casters

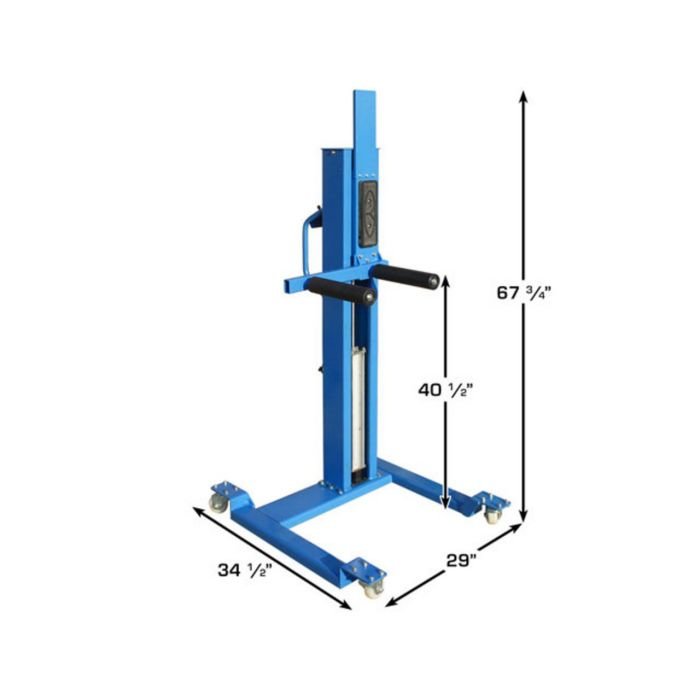

Specifications
- Capacity: 180 lbs.
- Max. Lifting Height: 40 1/2″
- Min. Lifting Height: 5 1/2″
- Arm Length: 12″
- Distance Between Arms: 10″
- Overall Height: 67 3/4″
- Required Air Pressure: 116-145 PSI
- Shipping Dimensions: 58″ X 14″ X 15 1/2″
- Shipping Weight: 175 lbs.
- Warranty: (90) Days Parts Only
