Atlas 414 14,000 lbs Commercial 4 Post Lift

The Atlas® 414 is a 4 post lift with 14,000 pounds of lift capacity designed for commercial use.

This lift is designed and built to commercial grade standards and will provide many years of service.

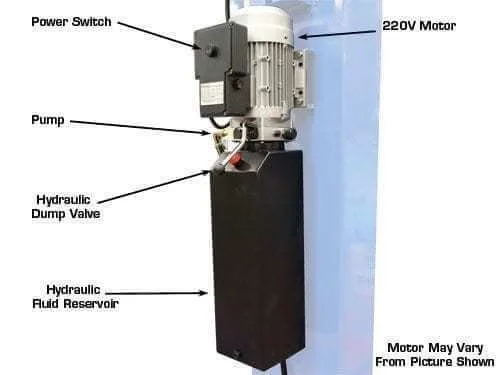

The Atlas® 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift.

Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

Finally, the Atlas® 414 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ8000BK) on the lift. Rolling jacks sold separately.

Features & Benefits

• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Diamond Plated Runways
• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-414 Specifications
