AMGO 408-HP Four Post Parking Lift

SKU: lifter132

3 250,00

10 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “AMGO 408-HP Four Post Parking Lift”

Your email address will not be published. Required fields are marked *

Description

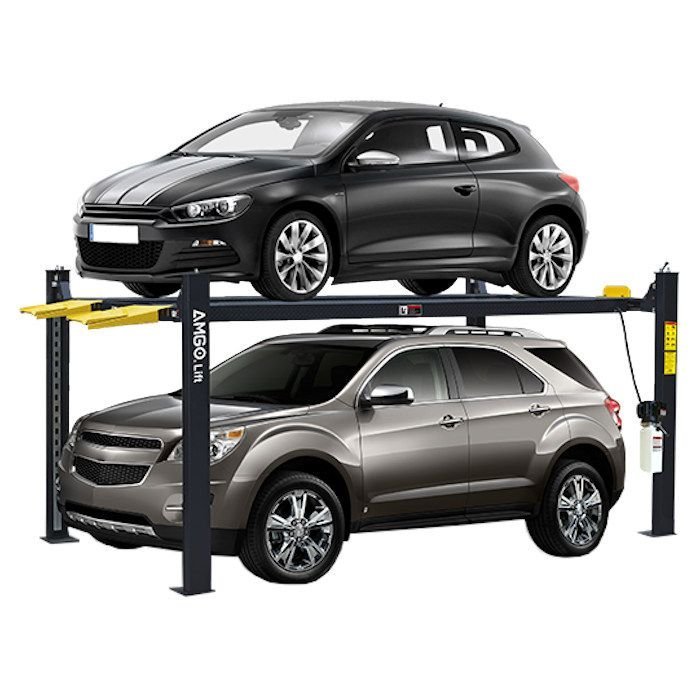

The AMGO 408-HP is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-HP one of the best commercial or private use lifts in the world. The 408-HP is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs. The 408-HP shares almost the same features as the 408-P but adds an additional 14″ of high lifting, making it easier to park vehicles with taller dimensions.

Features

  • 8,000 lbs. Lifting Capacity
  • AMGO ETL Certified Power Unit Comes Standard
  • High Quality Cylinder Designed and Made To High Standard

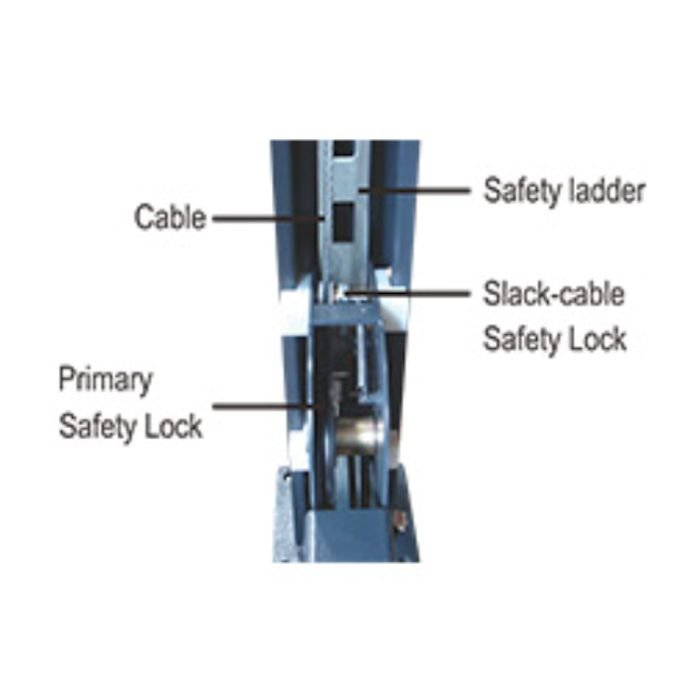

  • AMGO’s Patented Design Concealed Safety Lock Control Device
  • Manual Single-Point Lock Release
  • Aero Standard Cables Included Standard
  • Double-S Shaped Columns Are Utilized To Enhance Strength
  • Non-Slip Platforms Come With Foldable Drive-In Ramps Standard
  • Support Back To Back Installation To Minimize Space Occupancy
  • Power Side Column Can Be Installed At Any Corner
  • Extremely High Lifting Is Suitable To Park Taller Vehicles For 408-HP
  • Pull Rope Comes Standard For 408-HP

Optional Accessories

  • Jack Tray: No. 40808

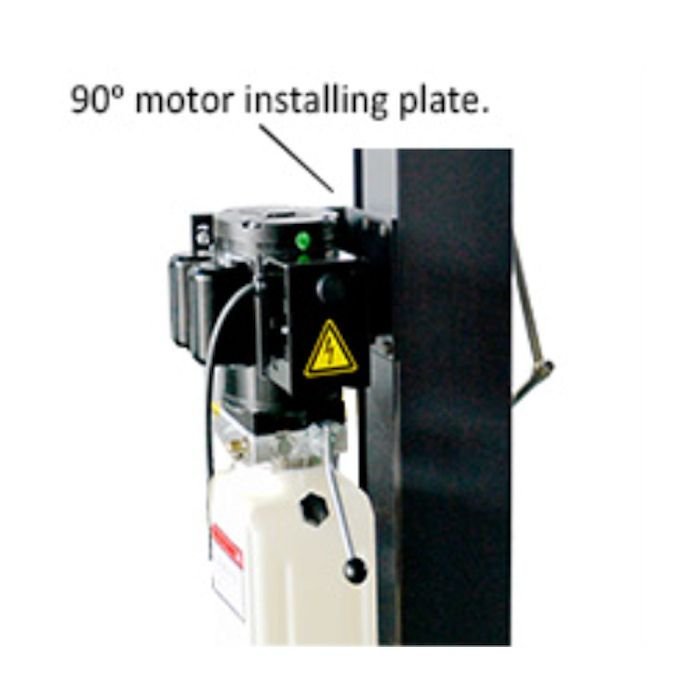

  • 90° Motor Bracket: No. 40802

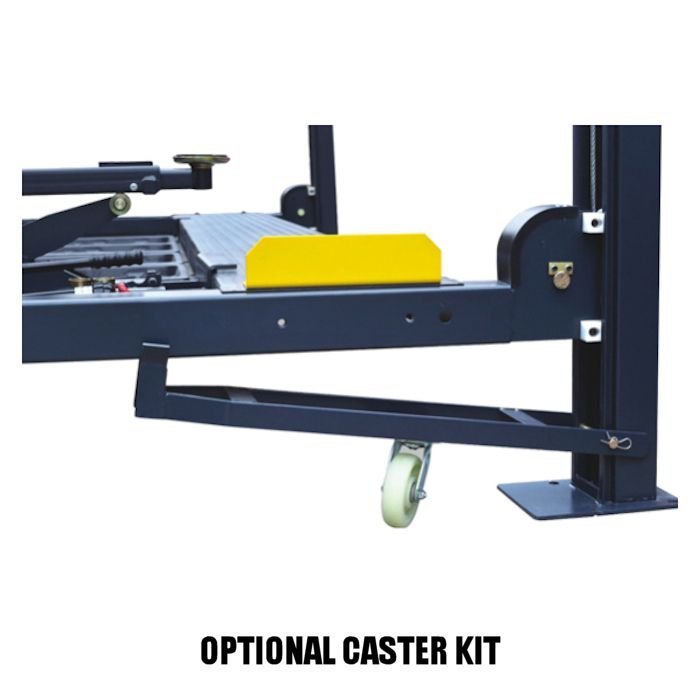

  • Set of (4) Caster Kit: No. 40801
  • Set of (4) Plastic Oil Trays: No. 40806
  • Four Post LED Light Kit: No. 40103
  • Extra Long Aluminum Ramps: No. 40805
  • J5H Manual Rolling Jack: No. J5H

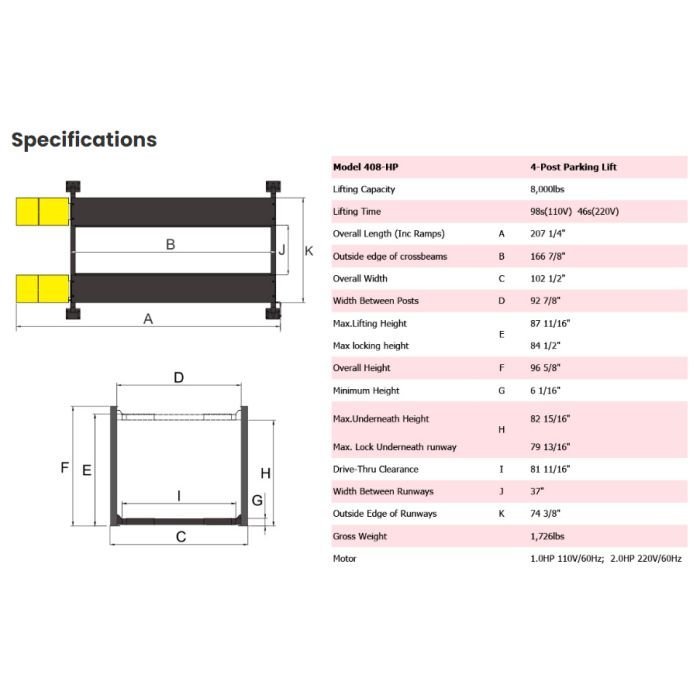

Specifications

Model Number 408-P 408-HP
Lifting Capacity 8,000 lbs. 8,000 lbs.
Lifting Time 98s (110V) / 40s (220V) 98s (110V) / 46s (220V)
A – Overall Length (Inc Ramps) 207 1/4″ 207 1/4″
B – Overall Edge of Crossbeams 166 7/8″ 166 7/8″
C – Overall Width 102 1/2″ 102 1/2″
D – Width Between Posts 92 7/8″ 92 7/8″
E – Max Lifting Height 73 11/16″ 87 11/16″
E – Max Locking Height 70 9/16″ 84 1/2″
F – Overall Height 82 7/8″ 96 5/8″
G – Minimum Height 6 1/16″ 6 1/16″
H – Max Underneath Height 69″ 82 15/16″
H – Max Lock Underneath Runway 65 13/16″ 79 13/16″
I – Drive-Thru Clearance 81 11/16″ 81 11/16″
J – Width Between Runways 37″ 37″
K – Outside Edge of Runways 74 3/8″ 74 3/8″
110V Motor 1.0HP 110V 60Hz 1Ph 1.0HP 110V 60Hz 1Ph
2200V Motor 2.0HP 220V 60Hz 1Ph 2.0HP 220V 60Hz 1Ph
Gross Weight 1,585 lbs. 1,585 lbs.
