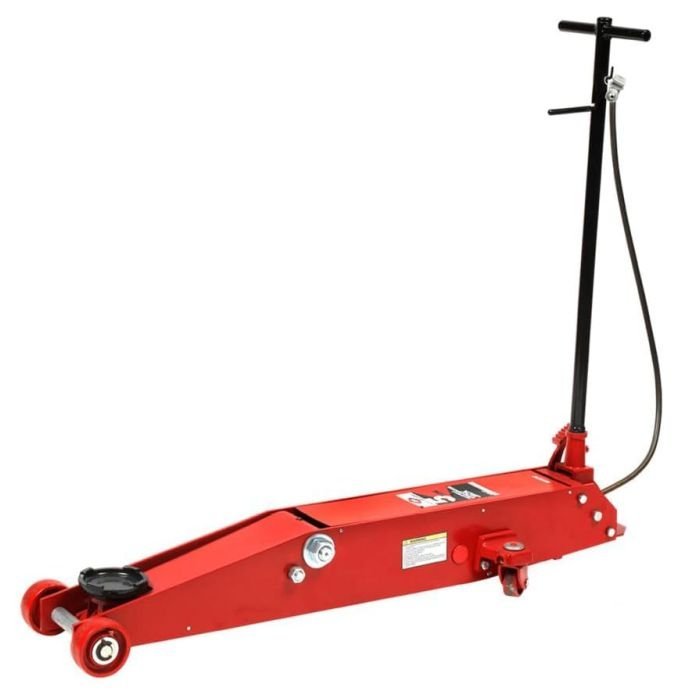

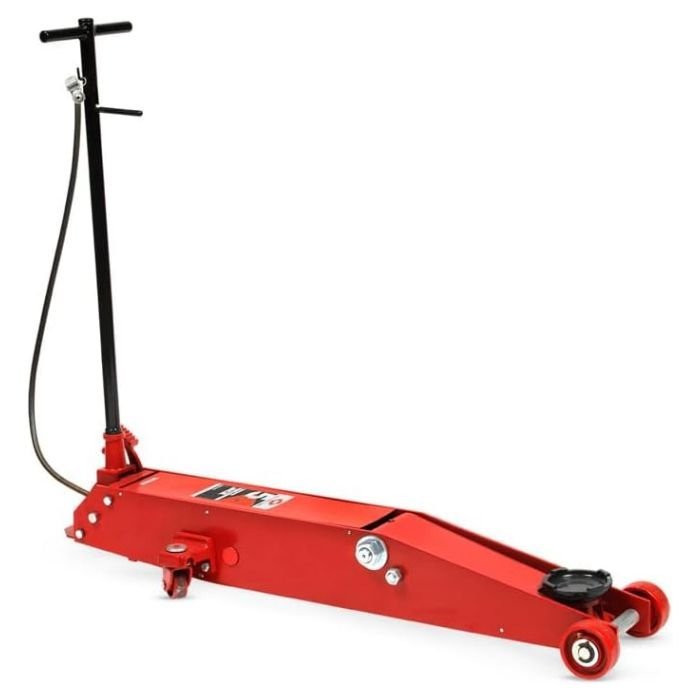

The American Forge & Foundry 5-Ton Long Chassis Air Assist Service Jack is made for those situations where you don’t want to take a chance on one of those cheap, bargain jacks. With sturdy steel frame construction and commercial-quality components, this model is perfect for truck and bus fleets as well as heavy construction equipment. With a low saddle height, it can reach under the frame of most vehicles. These heavy-duty jacks meet ANSI standards for commercial quality truck jacks and are extremely heavy-duty at surprisingly reasonable prices. Your auto garage will benefit from the long frame and premium quality components. Double-sealed hydraulics means this product is ready to go with no concerns about leaking cylinders. Smooth-rolling casters ensure graceful moving throughout your auto shop. The Air Assist pump operates at 115-200 PSI (7.8 CFM).
Features
- Operates At 115-200 PSI (7.8 CFM)
- Heavy Duty Pumps, Rams, And Cylinders Are Precision Machined And Inspected To Ensure Long Service Life And Superior Performance
- Super Long 56″ Body For Easier Lifting Of Vehicles With Long Overhangs
- Foot Operated Pump For Quick Lifting Efficiency
- Handle Mounted Locking Control Lever Has 3 Positions For Better Versatility In Under Car Positioning
- Automatic Overload Safety Valves For Added Safety

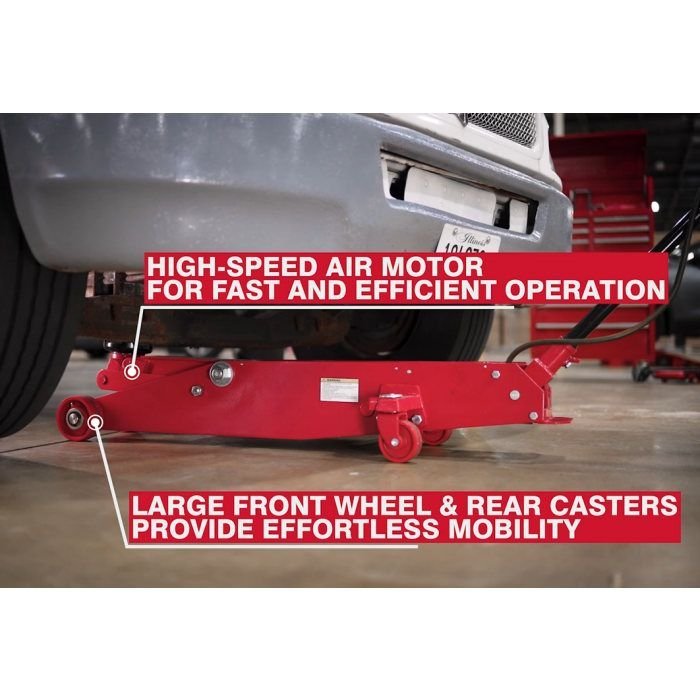

- Full Rotating Swivel Casters Allow For Easy Maneuvering In Small Shop Situations
- Control Lever Is Mounted On The Handle To Lock Handle In 1 Of 3 Possible Positions
- Extra Wide Frame For Maximum Stability
- Can Be Operated When Shop Air Is Not Available
Specifications
- Capacity: 5 Tons
- Low Height: 6″
- High Height: 22-1/2″
- Frame Length: 56″
- Front Width: 11-1/2″
- Rear Width: 15″
- Shipping Weight: 273 lbs.
- Warranty: (3) Year Limited
