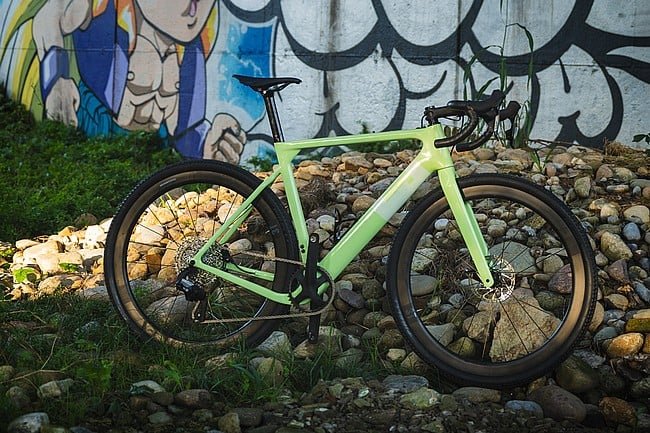

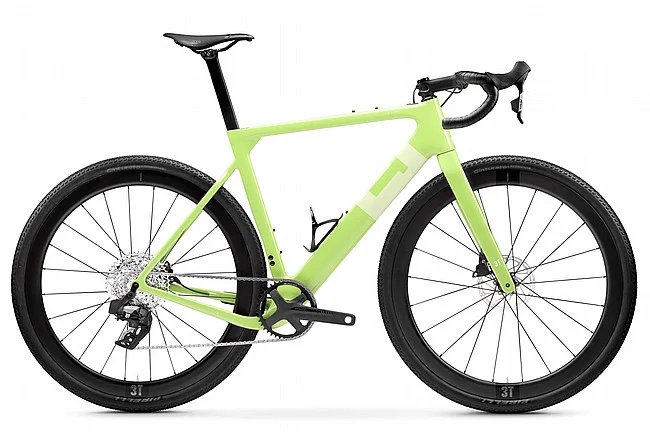

3T Primo WPNT Apex XPLR AXS Gravel Bike

The First, Still The Best

The 3T Primo WPNT Apex XPLR AXS is their original all-round bike with a refreshed design and now hand-painted in Italy. Primo (formerly Exploro) has become an icon among gravel frames, and like all classics, it ages gracefully. It’s even more stylish and efficient today, featuring a 1x wireless setup that minimizes cables and maximizes aesthetic cleanliness. Entering the world of aero gravel performance with electronic shifting is now easier than ever. You can now get a classic 3T frame with cutting-edge SRAM wireless technology at a competitive price.

3T is also now proud to say “WE PAINT.” Starting with the iconic Primo, the WPNT lineup brings 3T’s hand-painted in-house paint program to their fantastic frames.

Features:

• Squaero Fork Legs: Perfect to guide the airflow around the front wheel and boost fork stiffness.
• Squaero Headtube, Downtube and Seattube: Frame shapes complete the aero fork blades.
• Drop Chainstay on Drive Side: Improves tire & crank clearance.
• Tire Clearance: Fits up to 700 x 46mm tires and even 27.5″x51mm (2.0″), while keeping 4mm between any frame part and tire.
• 1x and 2x Compatibility: 1x transmission for simplicity and efficiency – 2x groupset compatible.
• Seatpost Expander: Aero-optimized and user-friendly just like on the Strada.
• Thread-together BB: All the Primo complete bikes come with thread-together BBs without any alloy rings in the carbon (avoiding added weight, complexity and debonding risk).
• Ritchey Rail Clamp: Available for round and oval rails.
• 2 Bottle Position Downtube: When using one bottle cage, go for the lowest downtube position for the best aero advantage.

Build:

• Frame: Primo WPNT – handpainted in Italy
• Frame Material: Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
• Fork: 3T Fango
• Headset: Sealed cartridge 1.125″ – 1.5″
• Thru-axle: 100×12 front – 142×12 rear (specific for hang loose hanger)
• Handlebar: 3T Superergo LTD (S: 40cm – M&L: 42cm – XL: 44cm)
• Bar Tape: 3T Prendo Tough
• Stem: 3T Apto Stealth (S:80mm -M:90mm – L: 100mm – XL:110mm)
• Bottle Cage: 3T nylon front load water bottle cage
• Rear Derailleur: Sram Apex XPLR Max 44T
• Shift/Brake Levers: Sram Apex AXS
• Brakes: Sram Apex Hydraulic Disc w/ Sram 160mm rotor
• Crankset: FSA Omega BB386EVO, 40T (S: 170mm – M&L: 172.5mm – XL: 175mm)
• Cassette: Sram Rival XPLR AXS 10-44T
• Wheelset: 3T Discus 40I30
• Tires: Pirelli Cinturato Adventure 700×45
• Seatpost: 3T Primo seatpost for Ritchey clamp
• Saddle: San Marco Shortfit or San Marco Shortfit 2.0 Off Road depending on availability
• *Specifications are subject to change without notice
