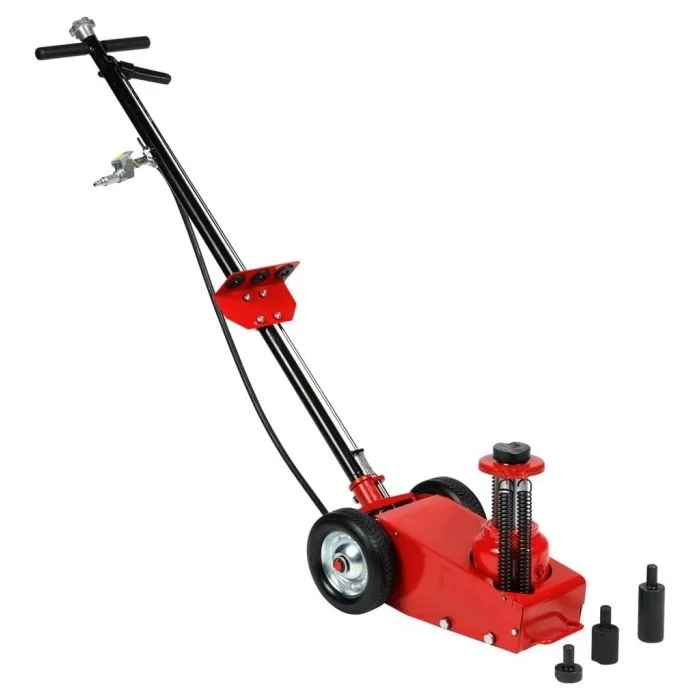

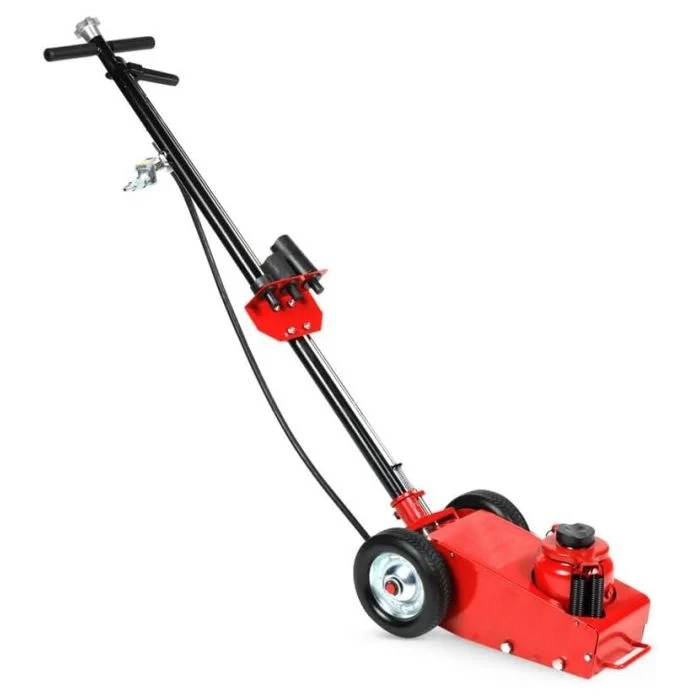

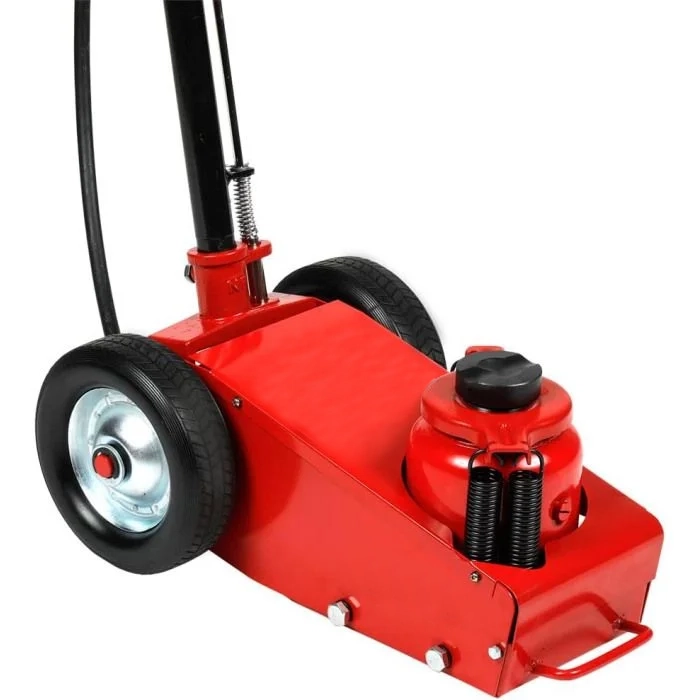

22-Ton Air Hydraulic Axle Jack with Handle and Extensions – Heavy Duty Lift Tool

This 22-ton air hydraulic axle jack is built for heavy-duty lifting tasks in truck and trailer shops, roadside repairs, bus and rail maintenance, and industrial garages. Designed with durability and performance in mind, it features a self-retracting spring return, a long T-handle for easy maneuverability, and large rubber wheels for smooth transportation.

The jack operates between 90–180 PSI and includes essential accessories like a two-piece handle, three lifting extensions, and a saddle adapter for versatility in different applications. Its heavy-duty steel frame, double-sealed hydraulic system, and integrated in-line air filter/dryer ensure reliable operation and long service life.

✅ Key Features:

• 22-ton lifting capacity

• Air-assist hydraulic operation (90–180 PSI)

• 8″ rubber wheels for easy mobility

• Includes 3 heat-treated extensions and a saddle adapter

• Two-piece 41″ T-handle locks in three positions

• Built-in automatic in-line oiler and air filter/dryer

• Heavy-duty welded cylinder and hydraulic pump

• Overload safety valve for added protection

• Steel saddle with extension screw for increased lift height

• Grommet retainer design (no clevis pins required)

✅ Specifications:

• Capacity: 22 Ton

• Ram Lift: 4-3/4″

• Low Height: 8-1/4″

• Max Height with Extensions: 21-1/2″

• Length: 20-1/4″

• Front Width: 16-15/16″

• Rear Width: 12-13/16″

• Weight: 99 lbs

• Warranty: 3-Year Limited
